LIGHT SOURCE
●LEDs: COB 350W, cool white
●LEDs brand: Getian, origin in China
●Color temp: 8500K
●Color rendering index(CRI): Ra>76
●Luminous flux: Max. 24,000 lm
●LEDs average lifespan: >50,000hrs
●Drive mode: constant current
●Drive current (A): 10
OPTICS
●Beam angle: 10°
●Light ouput (full Bright): 2232Lux@15mtr
●Max. projection distance: 45-50m
●Flicker free (refresh rate >4K Hz)
●Suitable for TV applications and all video recorded events
●16bit smooth dimming
●Optic lens material: dichroic glass
●Multi-set high precision optical Lens
●High quality optic system make super brightness
EFFECTS
●Manual focus
●Electronic dimming: 0-100% linear
●Electronic strobe: 1-20 flashes/sec.
●Built-in strobe macro and speed adjustable
●Strobe effects: normal, pulse, random, strong exploded
●Motor: 3pcs 2-phase, low noise
●Motor rotation: bi-direction, speed adjustable
●Electronic iris: 5-100% linear adjustment

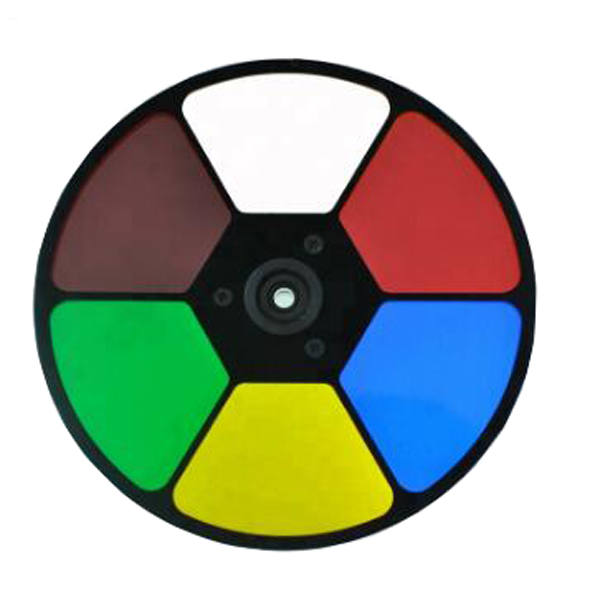

COLOR WHEEL
●1 color wheel: 5 dichroic colors + open
●Rainbow effect at variable speeds in bi-directions
●with two semi-colors function

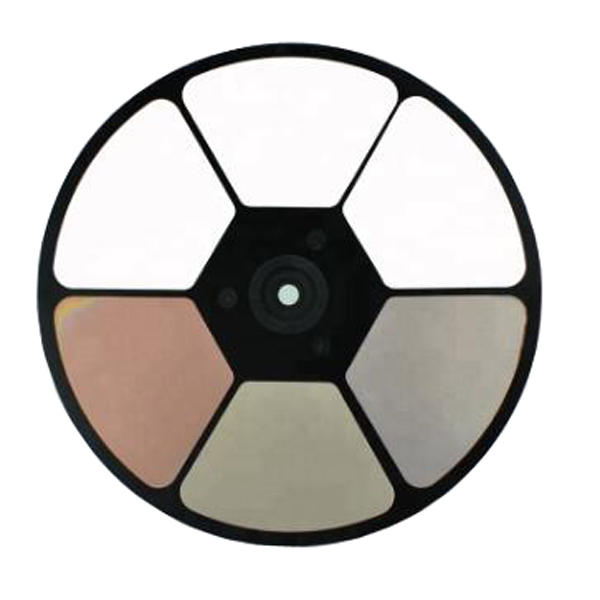

●1 CTO wheel: 3 color temp (3200K/4500K/5600K)
CONTROL MODE
●Control protocol: DMX512
●Control mode: DMX, manual
●Comfortable control panel at the rear
●Pragmatic buttons, for immediate opening of iris and dimmer
●DMX channels: 5CH
●DMX data In/Out: XLR 3Pin (XLR 5Pin optional)
DISPLAY & MENU SETTING
●Display: 4-digit LED
●Setting and addressing via 4-menu-button
●Display always ON
●Menu language: English
PAN-TILT
●Pan: any position via lighting stand
●Tilt (Yoke): ±45º
BODY & HOUSING
●Housing: high quality hard streching aluminium
●Housing color: black (white optional)
●Housing surface treatment: baking finished
POWER SUPPLY
●Power supply: AC100V-240V; 50/60Hz
●Power consumption: Max. 450W
●Auto switching power supply unit, 450W, PFC>0.98
●Power In: blue powercon
COOLING
●Cooper heat pipe cooling system for LED source
●Cooling: forced air convection, with 4 fans
THERMAL MANAGEMENT
●Over temperature protection
●Thermal management system ensures long life of LEDs
●Auto switch off light source in case of overheating
SAFETY PROTECTION
●Fuse: 5A
●Electronic protection against short circuit
●Input signal isolating protection
●with safety chain through holes at the yoke
RIGGING & MOUNTING
●Single mounting yoke
●Single operation handle at the rear
ENVIRONMENT AND PHYSICAL
●IP rating: IP20
●Environment temperature: -20°C-40°C
●Dimensions(mm): L615 x W240 x H210 (without yoke)
●Dimensions(inch): L24.21 x W9.45 x H8.27 (without yoke)
●Dimensions(mm): L615 x W275 x H300 (with yoke)
●Dimensions(inch): L24.21 x W10.83 x H11.81 (with yoke)
●Net weight: 9.8kg (21.61lb)
ACCESSORIES
●Power input cable: 1.5mm2, length 1.5mtr
●Power cable sheath material: PVC
●DMX cable included, length 2.0mtr
●Safety cable not included (optional)
● Lighting Strand included
● Flightcase included
