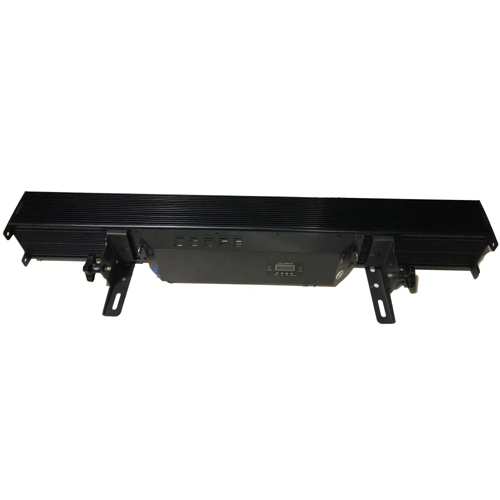

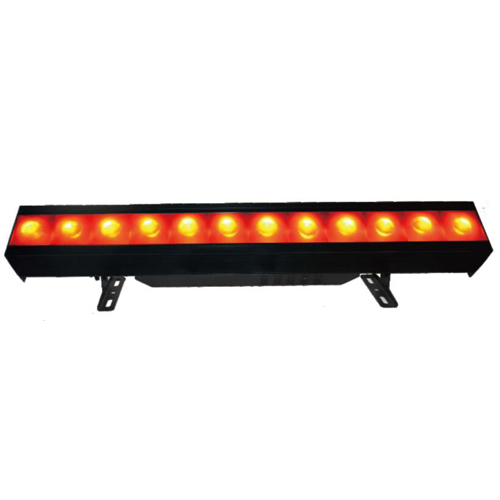

reareffect 1effect 2effect 3effect 4

LBI-1230A1(4IN1)B

LED Bar Indoor, 12X30W RGBW 4IN1 , 22°,IP20, Black Shell

Categories: .

Electrical
▪ Power supply: Electronic auto-ranging
▪ Power Input Rating: 100-24V, 50-60 Hz
▪ Power consumption: 400W

Optics
▪ 12X30W RGBW 4IN1
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current
▪ Lens Angle:22°/35°/60×20°

Color System
▪ Color Mixing: RGBW 4IN1

Effects
▪ Strobe: 0-30Hz
▪ Dimming : 0% – 100% (16-bits dimming)
▪ Variable Dimming Curves
▪ Color mixing rainbow effect

Control and Programming
▪ Protocal: DMX 512
▪ DMX channels: 9/52CH
▪ Built-in programs
▪ Display: LCD
▪ Control mode:DMX/master-slave/Auto run/Sound active

Connections
▪ Data in/out:3-pin(5-pin XLR optional)
▪ Power in/out: Powercon

Cooling System
▪ Cooling: air cooling

Work Enviroment
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C

Safety Devices
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating

Construction
▪ Housing: Aluminum diecast
▪ Color: Matte Black
▪ Protection rating: IP20

Mechanical Specification
▪ Length: 1002 mm
▪ Width: 132 mm
▪ Height: 222 mm

Weight
▪ Weight: 11.5 kg

Accessories
▪ Power input cable included, length 1mtr
▪ DMX cable included, length 1mtr
▪ Safety cable not included (optional)

Approvals
▪ CE
