ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Power Input Rating: 100-240 V AC, 50-60 Hz
▪ Power consumption: 176W
LEDS
▪ LEDs: 16pcs 15W, SMD5050, RGBA 4-in-1
▪ Color temp: 1000K-8500K adjustable
▪ CRI: Ra>80
▪ Luminance: Max. 8,000 lm
▪ Drive mode: constant current
▪ Drive current: 800mA
OPTICS
▪ Beam angle: 5°x12° (without secondary optical lens) 30° (fitted with secondary optical lens)
▪ Light ouput (full right):478Lux@6mtr
▪ Optic lens: acrylic, effective diameter 63mm
COLOR SYSTEM
▪ Color Mixing: RGBW (4IN1)
EFFECTS
▪ Pixel: in 4 segments, individual colors control of each segments
▪ Color change : Built-in color changing macro, speed adjustable
▪ Built-in color macro: color fade in & out, color jumping, speed adjustable
▪ Built-in Demo macro: Yes
CONTROL AND PROGRAMMING
▪ Protocal: DMX 512
▪ Control Modes: DMX, Master/Slave, Autorun
▪ DMX channels: 3/6/6/12/12/24/4/8/8/16/16/32/12CH

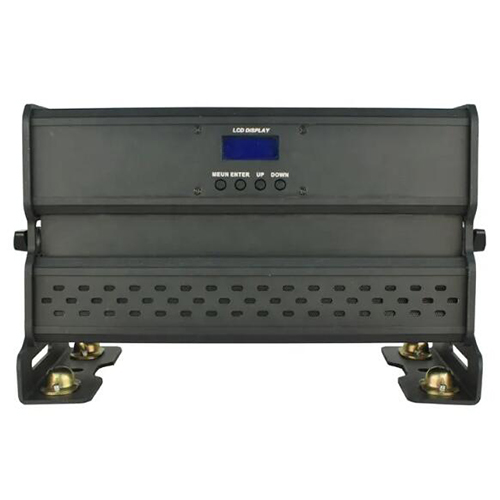

▪ Display: 1.6inch blue LCD backlit

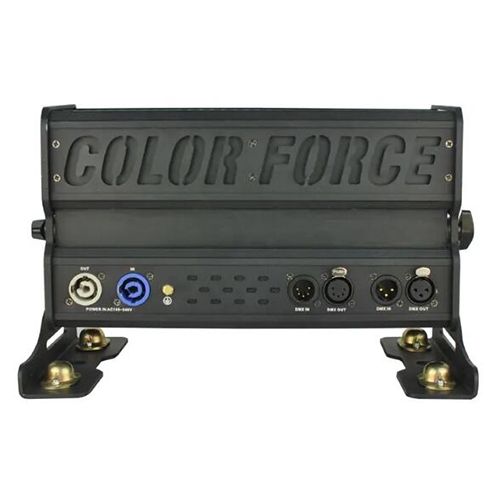

CONNECTIONS
▪ Data in/out:both XLR 3Pin and XLR 5Pin
▪ Power in/out: PowerCon
Cooling System
▪ Cooling: Cooling fans intelligent speed regulation
WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C
Safety Devices
▪ Electronic protection against short circuit
▪ Protection: Overcurrent, overvoltage and overheating
CONSTRUCTION
▪ Housing: Heatsinks in aluminum
▪ Color: Matte Black
▪ Protection rating: IP20
MECHANICAL SPECIFICATION
▪ Length: 350 mm
▪ Width: 280 mm
▪ Height: 201 mm
WEIGHT
▪ Weight: 3.9kg
ACCESSORIES
▪ Power input cable: 0.75mm2, PVC sheath, length 1.4mtr
▪ DMX cable: not included (optional)
▪ Safety cable: not included (optional)
▪ Mounting bracket: included (2pcs/pair)
