LBIP-403A1(3IN1)B

LED Bar Indoor Pixel, 40X3W RGB (3IN1), 5°,IP20, Black Shell

Categories: .

Electrical
▪ Power supply: Electronic auto-ranging
▪ Power Input Rating: 100-240 V AC, 50-60 Hz
▪ Power consumption: 120W

Optics
▪ 40X3W RGB (3IN1)
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current

Color System
▪ Color Mixing: RGB (3IN1)

Effects
▪ Strobe: 0-30Hz
▪ Dimming : 0% – 100% (16-bits dimming)
▪ Variable Dimming Curves

Control and Programming
▪ Protocal: DMX 512
▪ Control Modes: Auto/Master-slave/DMX512
▪ DMX channels: 3/4/6/7/8/12/13/24/25/60/61/120/121 CH
▪ Setting and addressing: Control panel with backlit graphic display
▪ Built-in programs
▪ Display: LED

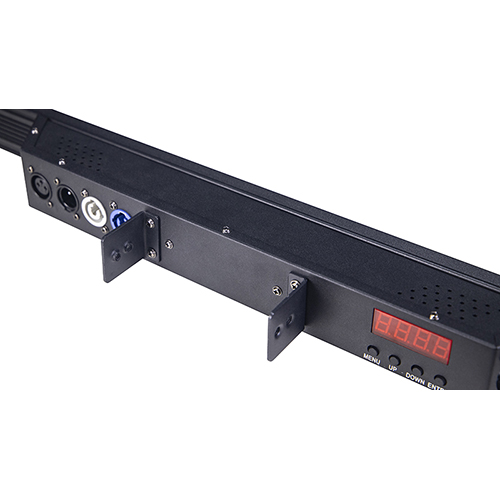

Connections
▪ Data in/out:3-pin (5-pin XLR optional)
▪ Power in/out: PowerCon

Cooling System
▪ Cooling: silent fan

Work Enviroment
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C

Safety Devices
▪ Power failure memory
▪ Protection: Over current, over voltage and over heating

Construction
▪ Housing: Aluminum
▪ Color: Matte Black
▪ Protection rating: IP20

Mechanical Specification
▪ Length: 1000 mm
▪ Width: 220 mm
▪ Height: 190 mm

Weight
▪ Weight: 2.5kgs

Accessories
▪ Power input cable included, length 1mtr
▪ DMX cable included, length 1mtr
▪ Safety cable not included (optional)
