DESCRIPTION

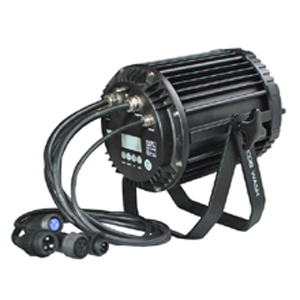

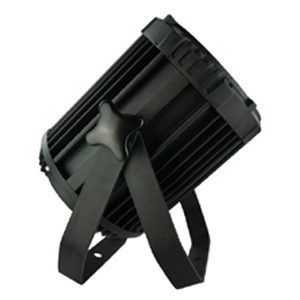

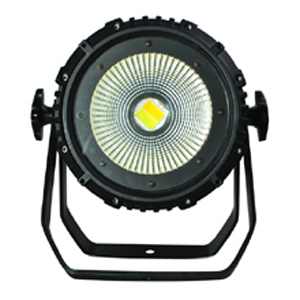

The Led Studio COB Par takes the popular COB and raises it to an even more advanced
level. The housing is designed not only to be IP65 rated, but also to deliver silent operation.
The Led Studio COB Par features a new white COB LED with UV.
With an even beam, single shadow, flexible lens options, and fully functional barndoors, the
Led Studio COB Par is the ultimate white source workhorse LED Par.
KEY FEATURES
▪ 100W COB LED UV source
▪ CRI>80
▪ Beam angle: 60° (30° optional)
▪ IP65 rating
▪ Compatible with StudioCob accessories
LIGHT SOURCE
▪ LEDs: 1pc COB 100W, UV
▪ LEDs brand: Jinxin
▪ Color temp: 2800-3000K
▪ Color rendering index(CRI): Ra>80
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current
▪ Drive current(mA): 2500
OPTICS
▪ Beam angle: 60° (30° optional)
▪ Reflector material: aluminum
▪ Lens Type: Dichroic parabolic reflector in combination with HD fresnel lens
▪ Flicker free (refresh rate >1200 Hz)
▪ 16 bit smooth dimming
▪ Dimmer mode: 4 class dimmer delay
COLORS
▪ Single color, UV
EFFECTS
▪ Electronic dimmer: 0-100% linear
▪ Electronic strobe: 1-20 flashes/sec.
CONTROL AND PROGRAMMING
▪ Control mode: DMX, autorun and Master/Slave
▪ DMX Channels: 1/3CH
▪ Onboard programming functionality enables programming
without external DMX controller
▪ Setting and addressing: 4-digit LED
▪ Menu language: English
▪ Display 30sec. auto sleep
▪ DMX Data In/Out: XLR 3Pin
PAN-TILT
▪ Tilt: -180º～+180º
BODY
▪ Housing: Sturdy die-cast aluminium body conceived for long-time durability
▪ Housing: streching aluminium body
▪ Housing color: black (silver, white optional)
▪ Housing surface treatment: baking finished
POWER SUPPLY
▪ Power consumption: Max. 120W
▪ Auto switching power supply unit, PFC>0.95
▪ Power supply: AC100V-240V, 50/60Hz (auto-ranging)
▪ Power In/Out: waterproof, daisy chain
▪ Power linking: up to 10units@120V and 20units@230V
COOLING & THERMAL MANAGEMENT
▪ Automatic break in power supply in case of overheating
▪ Entire casing as heat sink
▪ Cooling: natural convection
SAFETY DEVICES
▪ Power failure memory
▪ Electronic protection against short circuit
▪ with one eye bolt at the rear
RIGGING & ASSEMBLING
▪ with double mounting yokes
ENVIRONMENT AND PHYSICAL
▪ IP rating: IP65
▪ Dustproof at the front of head: tempered glass
▪ Environment temp: -20°C-40°C
▪ Dimensions(mm): L260 x W250 x H350 (without yoke)
▪ Dimensions(mm): L260 x W290 x H400 (with yoke)
▪ Net weight: 6.50kg
ACCESSORIES
▪ Power In/Out cable attached to fixture: 2.50mm2, PVC
▪ Power In/Out cable attached to fixture: length 1.0mtr
▪ DMX In/Out cable attached to fixture: length 1.0mtr
▪ Power in conversion cable not included (optional)
▪ DMX in conversion cable not included (optional)
▪ Power extention cable not included (optional)
▪ DMX extention cable not included (optional)
▪ Safety cable not included (optional)
