LIGHT SOURCE
▪ LEDs: 216pcs 0.6W, SMD5730, Cool White
▪ Color temp: 6500-7000K
▪ Color rendering index(CRI): Ra>70
▪ Luminous flux: Max. 13,500 lm
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current
▪ Drive current (mA): 180
AUXILIARY LIGHT SOURCE
▪ LEDs: 144pcs 0.2W, SMD5050, RGB 3-in-1
▪ Drive mode: constant current
▪ Drive current (mA): 20
OPTICS
▪ Beam angle: 120°
▪ Reflector material: aluminum
COLORS
▪ Single color, cool white
▪ Aura color mixing: RGB
DIMMER & STROBE
▪ Electronic dimming: 0-100% linear
▪ 16bit smooth dimming
▪ Flicker free (refresh rate >2K Hz)
▪ Electronic strobe: 1-20 flashes/sec
EFFECTS (AUXILIARY LIGHT SOURCE)
▪ Built-in color changing macro, speed adjustable
▪ Built-in 11 chasing programmes, speed adjustable
▪ Dot matrix in 48 segments, individual colors control of each
CONTROL MODE
▪ Control protocol: DMX512
▪ Control mode: DMX, master/slave, auto, sound-activate
▪ DMX channels: 7/13/148CH
▪ Onboard programming enables programming without external DMX controller
▪ DMX data In/Out: XLR 3Pin (XLR 5Pin optional)
DISPLAY & MENU SETTING
▪ Display: 4-digit LED
▪ Setting and addressing via 4-menu-button
▪ Menu language: English
▪ Display: with flip function (can be rotate through 180°)
▪ Display can be set via menu, either always ON or delay OFF
▪ Display auto OFF after 20sec no setting action
▪ Display fixture’s software version
TILT
▪ Tilt (yoke): ±180º
BODY & HOUSING
▪ Housing: iron
▪ Housing surface treatment: baking finished
▪ Housing color: black (white optional)
POWER SUPPLY
▪ Power supply: AC100V-240V; 50/60Hz
▪ Power and current: Max. 137W@120V, 60Hz
▪ Power and current: Max. 132W@230V, 50Hz
▪ Auto switching power supply unit, 100W, PFC>0.60

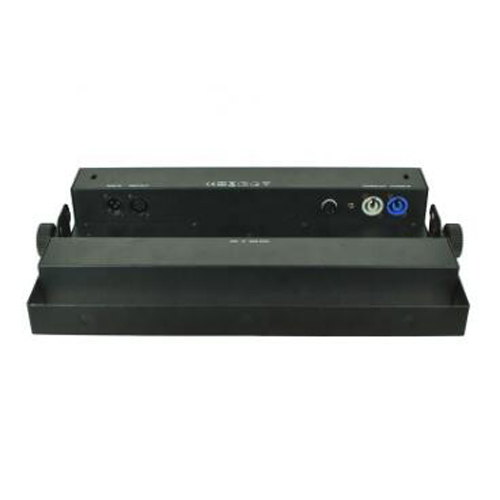

▪ Power In/Out: Powercon, daisy chain
COOLING
▪ Heatsinks in aluminum
▪ Cooling: natural convection (no fan, no noise)
SAFETY PROTECTION
▪ Fuse: 3A 120V, 2A 240V
▪ Electronic protection against short circuit
▪ with safety chain through holes at the yoke
RIGGING & MOUNTING
▪ Single mounting yoke

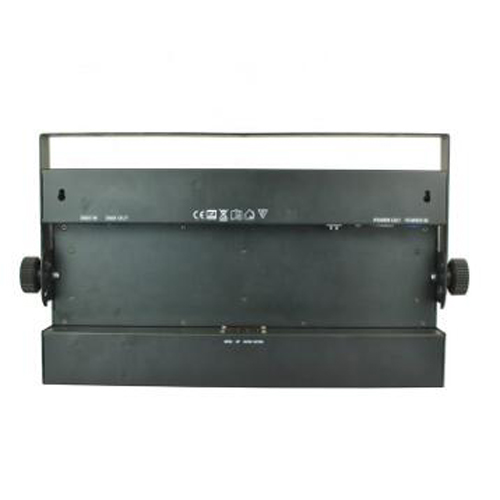

▪ Wall mounting points: 2 holes at the rear
SPLICING & ASSEMBLING
▪ Convenient horizontal splicing design
ENVIRONMENT AND PHYSICAL
▪ IP rating: IP20
▪ Environment temperature: -20°C-40°C
▪ Front dustproof panel: acrylic
▪ Dimensions(mm): W460 x D79 x H257 (with yoke)
▪ Net weight: 3.78kg
ACCESSORIES
▪ Power input cable: 0.75mm2, length 1.2mtr
▪ Power cable sheath material: PVC
▪ DMX cable excluded (optional)
▪ Safety cable excluded (optional)
