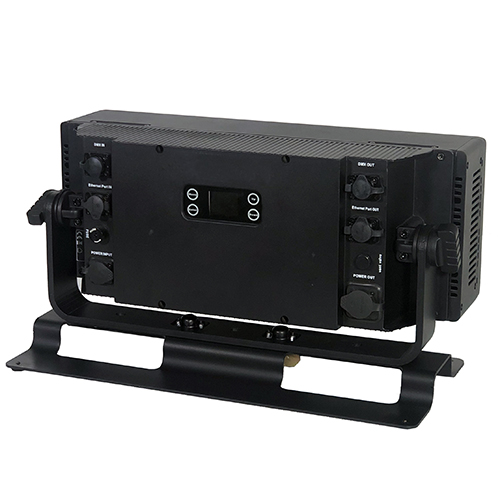

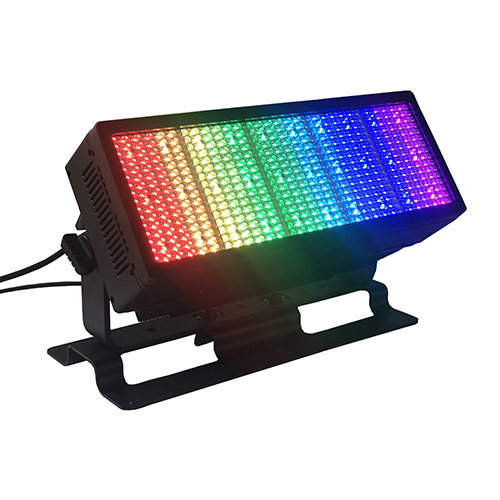

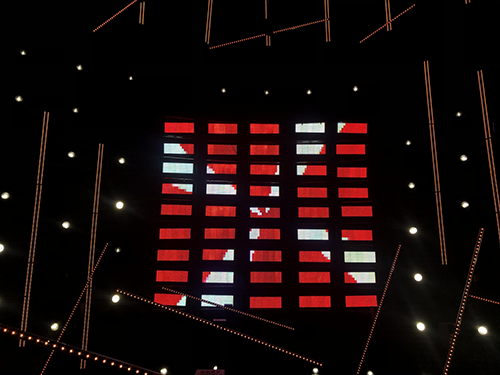

reareffect 1effect 2effect 3

LCSP-960A4(3IN1)B

LED Strobe Panel, 480X1.5W RGB + 480X0.5W White, IP65,Black Shell

Categories: .

ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Power Input Rating: 100-240 V AC, 50-60 Hz
▪ Consumption: 1000W (full-on constant output)
Consumption: 1200W (peak instant strobe)
▪ PF:98

OPTICS
▪ Light source: 480X1.5W RGB + 480X0.5W White
▪ Pixel Matrix: 4 x 15
• Pixel Control: 60 controllable sections
▪ Beam Angle: 60°
▪ Drive Mode: Constant Current

COLOR SYSTEM
▪ Color: RGB

EFFECTS
▪ Strobe: 0-25Hz
▪ Dimming : 0% – 100%
▪ Rotating Gobos: Dynamic Patterns with speed and rotation control
▪ Pixel Patterns: Pre-programmed dynamic and static patterns
▪ FX Generator: Adjustable foreground/background color, index, speed, direction
▪ Pixel Patterns: Pre-programmed dynamic and static patterns
▪ FX Generator: Adjustable foreground/background color, index, speed, direction
▪ Static Color Mode: Selection of static color
▪ Manual Color Mode: Manual adjustment of dimmer and strobe
▪ Auto Mode: Built-in programs with execution speed adjustment

MOVEMENT
▪ Resolution: 8-16 Bit
▪ Position Feedback: yes

CONTROL
▪ Protocol: DMX-512
▪ DMX Channels:12/28/44/244
▪ Display: Black TFT touch display
▪ Control mode: DMX512, RDM, Art-Net, Kling-Net

CONNECTIONS
▪ Input: 3-pin XLR Male  (XLR 5Pin is optional)
▪ Output: 3-pin XLR Female  (XLR 5Pin is optional)
▪ Power in/out: PowerCon

COOLING SYSTEM
▪ Cooling: forced air with low noise fan

WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C (104° F)
▪ Minimum ambient temperature (Ta min.): 5° C (41° F)

SAFETY DEVICES
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating

CONSTRUCTION
▪ Housing:  die-cast aluminium
▪ Shell: Black    (white optional)
▪ Housing surface treatment: baking finished
▪ Protection rating: IP65

MECHANICAL SPECIFICATION
▪ Length: 510 mm
▪ Width: 287 mm
▪ Height: 198 mm

WEIGHT
▪ Weight: 14.0kg

ACCESSORIES
▪ Power In/Out cable included, length 1mtr
▪ Power in conversion cable not included (optional)
▪ DMX in conversion cable not included (optional)
▪ Power extention cable not included (optional)
▪ DMX extention cable not included (optional)
▪ Hanging bracket included, 1pc
▪ Safety cable not included (optional)

APPROVALS
▪ CE
