Electrical
▪ AC power: 100-240 V nominal, 50/60 Hz
▪ Typical total power consumption: 230 W
Optics

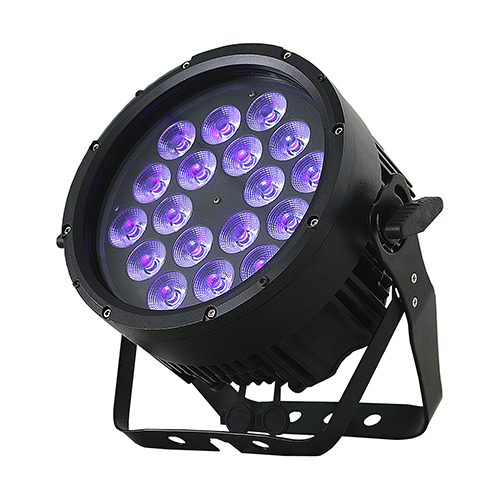

▪ Light source: 18 x 12 W RGBWA+UV 6IN1 LEDs
▪ Beam Angle：25º
▪ Minimum LED lifetime: 50 000 hours (to >70% luminous output)
Dynamic Effects
▪ Color mixing: RGBWA+UV
▪ Electronic dimming: 0 – 100%
▪ Strobe and pulse effects: Variable speed and action, random strobe
▪ 5 auto-running modes，rainbow channel and rainbow effect
Control and Programming
▪ Control options: DMX
▪ DMX channels: 4/8
▪ DMX address setting: Control panel with LED display
▪ Stand-alone programming: Control panel with LED display
▪ Protocol: DMX512
Construction
▪ Housing: Iron
▪ Color(s): Black
▪ Protection rating: IP65
Installation

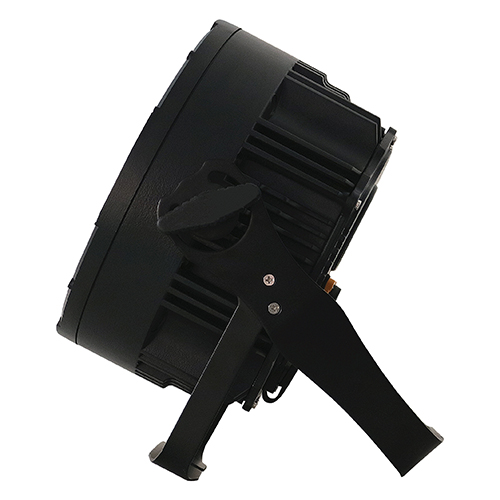

▪ Mounting: Double bracket, surface or truss mount
▪ Orientation: Any
▪ Location: Outdoor use only

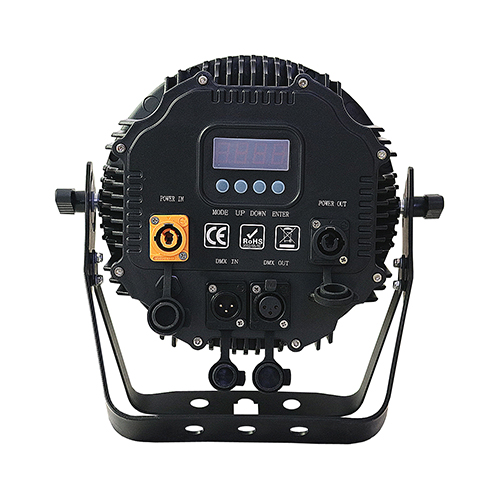

Connections
▪ AC power in/thru: PowerCon
▪ DMX data in/thru: 3-pin XLR (5-pin XLR Optional)
Thermal
▪ Cooling: Forced air convection
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C
Physical
▪ Length: 298 mm
▪ Width: 268 mm
▪ Height: 158 mm
▪ Weight: 7.0 kg
Approvals
▪ CE
