Source
• Led: COB 100W, cool white
• Led brand: Lighten, origin in Taiwan
• Led average lifespan: >50,000hrs
• Drive mode: constant current
• Drive current (mA): 2,700-3,000
Optics
• Beam angle: zoom 15°-55°
• Color temp: 5600-6000K
• Color rendering index(CRI): Ra>79
• Light ouput (full Bright)@15°:2540Lux@4mtr;684Lux@8mtr
• Light ouput (full Bright)@55°:1296Lux@4mtr;352Lux@8mtr
Effect
•Electronic dimmer: 0-100% linear
•Electronic strobe: 1-25 flashes/sec.
Control and programming
• Control mode: DMX, autorun and Master/Slave
• DMX Channels: 1/2CH
• Onboard programming functionality enables programming
without external DMX controller
• Display: LCD backlit, with English menu
• LCD backgound light 10-100% adjustable
• Display can be set auto sleep after 5/10/30/60 sec. unpressed

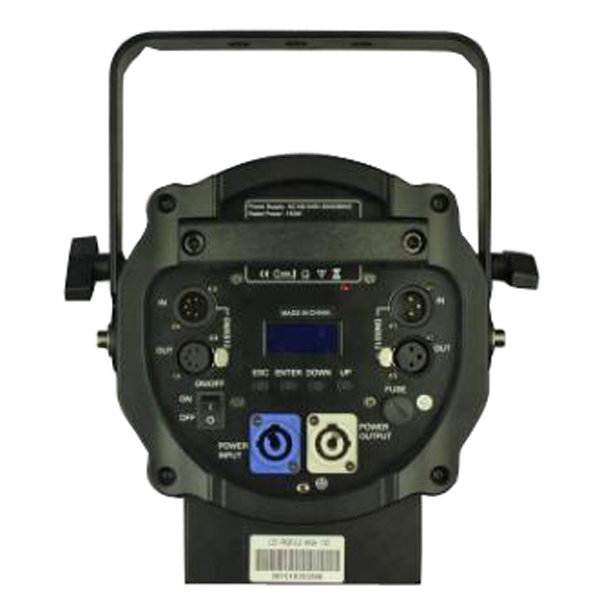

• DMX Data In/Out: both XLR 3Pin and XLR 5Pin
Power Supply
• Power supply: AC100V-240V, 50/60Hz (auto-ranging)
• Power consumption: Max. 140W
• Auto switching power supply unit, PFC>0.95
• Power In/Out: Powercon, daisy chain
• Power linking: up to 6units@120V and 12units@230V
Data Connection
• Data Connectors In/Out: XLR 3Pin (XLR 5Pin is optional)
Body
• Housing: streching aluminium
• Housing color: black (white optional)
• Housing surface treatment: baking finished
Safety Devices
• Electronic protection against short circuit
Thermal Specification
• Environmental temperature: -20 °C – 40 °C
Cooling System

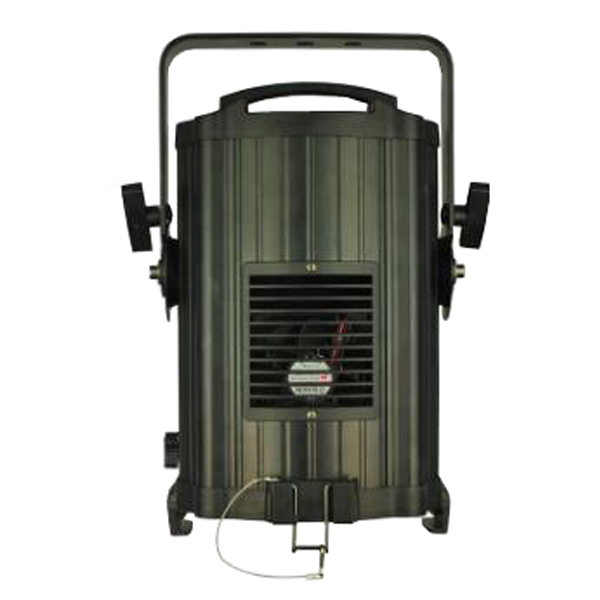

• Cooling: forced air convection, with 1 slient fan
• Cooling fans’ speeds adjustable
• Cooling fans automatically start once internal temperature
reach 40º
Internal protection
• IP rating: IP20
Mechanical Specification
• Length: 425 mm
• Width: 315 mm
• Height: 320 mm
• Net Weight: 5.80 kg
Accessories

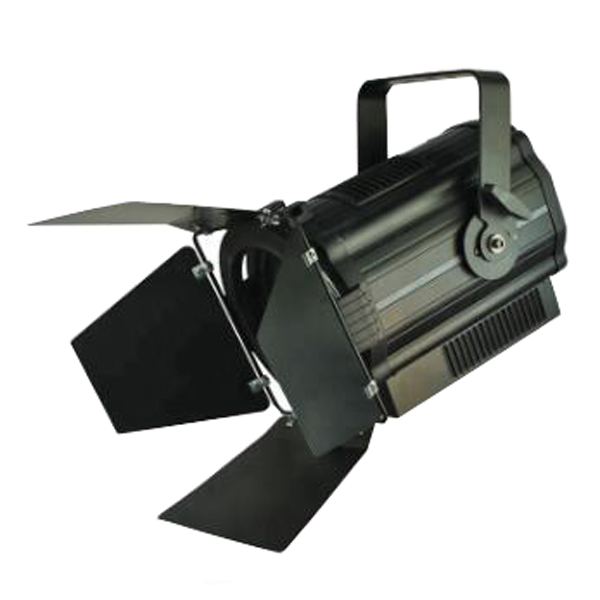

• Barndoor included
• Power input cable included, length 1mtr
• DMX cable included, length 3mtr
• Safety cable not included (optional)
Approval
• CE
