Source
• Led: COB 300W, RGBCAL(6IN1)
• Led average lifespan: >50,000hrs
• Drive mode: constant current
• Drive current (mA): 5,800
Optics
• Beam angle: 15°-55°
• Color temp: 2800K-6000K
• Color rendering index(CRI): ≥90
Effect:
•Electronic dimmer: 0-100% linear
•Electronic strobe: 1-25 flashes/sec.
Control and programming
• Control mode: DMX, Master/Slave
• DMX Channels: 10/14CH
• Onboard programming functionality enables programming without external DMX controller
• Display: LCD backlit, with English menu
• LCD backgound light 10-100% adjustable

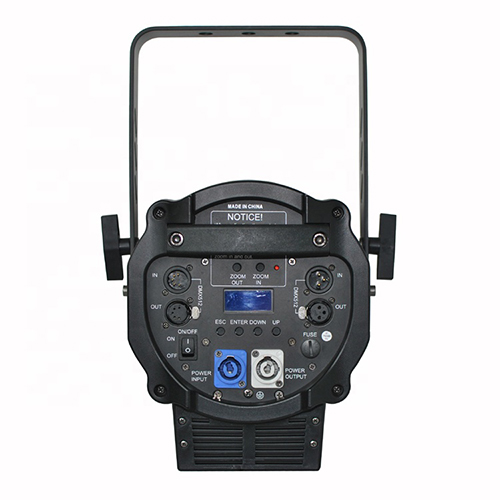

• DMX Data In/Out: both XLR 3Pin and XLR 5Pin
Power Supply:
•Power supply: AC100V-240V, 50/60Hz (auto-ranging)
•Power consumption: Max.350W
•Auto switching power supply unit, PFC>0.95
•Power In/Out: Powercon, daisy chain
•Power linking: up to 2units@120V; 5units@230V
Data Connection:
•Data Connectors In/Out: XLR 3Pin & XLR 5Pin
Body
• Housing: streching aluminium
• Housing color: black (white optional)
• Housing surface treatment: baking finished
Safety Devices
• Electronic protection against short circuit
Thermal Specification
•Environmental temperature: -20 °C – 40 °C
Cooling System
•Cooper heat pipe cooling system for LED source
•Cooling: forced air convection, with 2 slient fans
Internal protection
• IP rating: IP20
Mechanical Specification
•Length: 270 mm
•Width: 276 mm
•Height: 500 mm
•Net Weight: 8.5 kgs
Accessories
• Barndoor included
• Power input cable included, length 1.5mtr
• DMX cable included, length 2mtr
• Safety cable not included (optional)
Approval:
•CE
