LIGHT SOURCE
▪ LEDs: COB 60W, 3200K+5600K
▪ Color temp: 3200K+5600K
▪ Color rendering index(CRI): Ra>95
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current
OPTICS
▪ Beam angle: 16°-28°
▪ Flicker free (refresh rate >100K Hz)
▪ Light output (full Bright):
16° 6868Lux@2mtr; 1620Lux@4mtr
28° 2665Lux@2mtr; 663Lux@4mtr
COLORS
▪ Double color, Warm White+Cool White
EFFECTS
▪ 16 bit smooth dimming
▪ Electronic dimmer: 0-100% linear
▪ Electronic strobe: 1-20 flashes/sec.
CONTROL AND PROGRAMMING

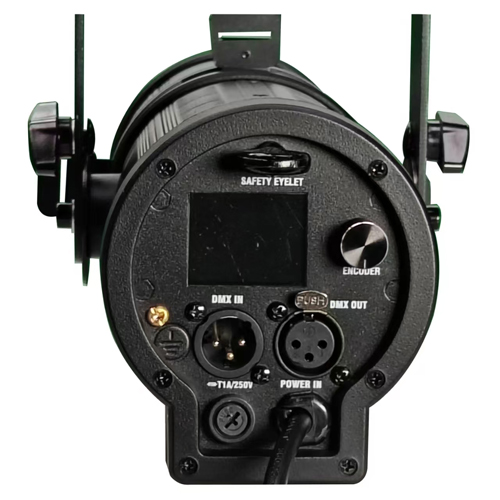

▪ Control mode: RDM, DMX512, Master/Slave, Stand-alone
▪ Setting and addressing: OLED
▪ DMX Data In/Out: XLR 3Pin (XLR 5Pin is optional)
▪ DMX Channel: 4/7CH
PAN-TILT
▪ Tilt: -135º～+135º
BODY
▪ Housing: Aluminium
▪ Housing color: Black (white optional)
▪ Housing surface treatment: baking finished
POWER SUPPLY
▪ Power consumption: Max. 70W
▪ Auto switching power supply unit
▪ Power supply: AC100V-240V, 50/60Hz (auto-ranging)
COOLING & THERMAL MANAGEMENT
▪ Thermal management system ensures long life of LEDs
▪ Automatic switch off light source in case of overheating or failed operation of cooling system
▪ Heatsinks in aluminum for LED source
▪ Cooling: 1 pc silent fan
SAFETY DEVICES
▪ Power failure memory
▪ Electronic protection against short circuit
▪ With safety chain through holes at the yoke
RIGGING
▪ with single mounting yoke
ENVIRONMENT AND PHYSICAL
▪ IP rating: IP20
▪ Environment temp: -20°C-45°C
▪ Dimensions(mm): L318 x W155 x H140
▪ Net weight: 3.5kgs
ACCESSORIES
▪ Power input cable included, length 1.0mtr
▪ Power cable: 0.75mm2, PVC
▪ DMX cable included
▪ Safety cable excluded (optional)
▪ Barndoor excluded (optional)
