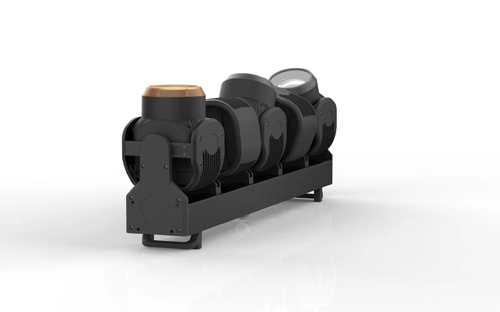

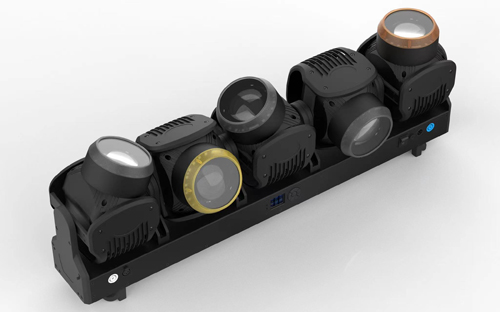

reareffecteffect 1effect 2effect 3

LMHB-5120A1(4IN1)B

LED Moving Head Beam, 5X120W RGBL 4IN1,3°-330 °,IP20,Black Shell

Categories: .

OPTICAL
• Light Source: 5x120W RGBL LEDs,120×0.5W RGB LEDs
• Color Temperature (range): 2700 to 8000 K
• Beam angle:3-0°

DYNAMIC EFFECTS
• Pan:60°,Tilt:220°
• Dimmer: 0-100% 16bit dimming
• Shutter/Strobe: Electronic
• Strobe effect:0-20HZ strobe、Puls strobe、Random strobe
• Color Temperature Presets: Yes
• Dim Modes: 4

COLOR
• Uniform RGBL mixing color
• LED pixel control of the outer ring to create a more gorgeous chasing effect

DISPLAY
• 2.4-inch TFT display screen which Can be exchanged in Chinese and English
• 4 touch buttons
• The key lock can be set to prevent incorrect operation
• The display screen can  reversed by 180°,which is suitable for installation in different positions

SOFTWARE
• Software Upgrade:Upgrade with DMX signal cable
• It Shows the usage time of the fixture to make customers convenient to understand the use of the fixture in a timely manner

CONTROL
• 2 DMX channel modes:41/71CH
• 2 control modes:DMX512、Maser-Slave
• SettingandAddressing:RDM

COOLING SYSTEM
• LED temperature detection system to protect the service life of LED chip
• Cooling : silent fan

POWER SUPPLY
• Power supply: Electronic auto-ranging
• Power Input Rating: 100-240 V AC, 50-60 Hz
• Power consumption: 680W
• Power Connectors In/Out Powercon

DATA CONNECTION
• Data Connectors In/Out: XLR 3Pin (XLR 5Pin is optional)

INTERNAL PROTACTION
• IP rating: IP20

CONSTRUCTION / PHYSICAL
• Dimensions: 1002x196x334mm
• Weight: 29.0 kg
• Exterior Color: Black
• Housing Material: metal+ABS plastic

ACCESSORIES
• Power cable included
• DMX cable included
• Safety cable not included (optional)
• Hanging bracket not included (optional)
• Flightcase not included (optional)
