LIGHT SOURCE
▪ LEDs: 7pcs COB 40W, RGBW 4-in-1
▪ LEDs brand: OSRAM
▪ Color temp range: 2500K-8000K adjustable
▪ Color rendering index(CRI): Ra>70
▪ Luminous flux: Max. 7,630 lm
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current
▪ Drive current (mA): 2,500
OPTICS
▪ Beam angle: 5°-50°
▪ LEDs brand: OSRAM
▪ Light ouput (full Bright) as follows:
Beam mode@5°: 10,000lux@,3mtr; 2,5501lux@7mtr
Wash mode@50°: 2,000lux@3mtr; 700lux@7mtr
▪ Optic lens material: acrylic
▪ Light guide rods material: glass
COLORS
▪ RGBW color mixing
▪ HSV (Hue, Saturation & Value) mode
DIMMER & STROBE
▪ Electronic dimming: 0-100% linear
▪ 16 bit smooth dimming
▪ Flicker free (refresh rate >1K Hz)
▪ Suitable for TV applications and all video recorded events
▪ Electronic strobe: 1-20 flashes/sec
▪ Built-in strobe macro and speed adjustable
▪ 3 Strobe effects: normal, pulse, random
EFFECTS
▪ Electronic linear zoom: 5°-50°
▪ Zoom step motor: 2pcs 2-phase, low noise
▪ Built-in color fade in & out macro, speed adjustable
▪ Built-in color jumping macro, speed adjustable
CONTROL MODE
▪ Control protocol: DMX512
▪ Control mode: DMX, auto, master/slave, sound-activate
▪ DMX channels: 12/17CH
▪ Onboard programming enables programming without external DMX controller
▪ DMX data In/Out: both XLR 3Pin and XLR 5Pin
▪ USB: mobile charger turns on the menu display
DISPLAY & MENU SETTING
▪ Display: 2.6inch blue LCD backlit
▪ Setting and addressing via 5-menu-button
▪ Display: with flip function (can be rotate through 180°)
▪ Display can be set via menu, either always ON or delay OFF
▪ Display auto OFF after 60sec no setting action
▪ Display light source’s used time
▪ Display fixture’s used time
▪ Display fixture’s software version
▪ Display light source real time temperature
▪ Menu language: English/Chinese
▪ Reset: via DMX and/or menu operate
PAN-TILT
▪ Pan: Max 540° (8 or 16 bit resolution)
▪ Tilt: Max 200° (8 or 16 bit resolution)
▪ User-selectable Pan/Tilt ranges
▪ Automatic Pan/Tilt reposition
▪ Pan/Tilt motors: 3 phase, fast and quiet movement
▪ Scan speed: Pan 1.5sec/540°; Tilt 1.0sec/200°
BODY & HOUSING
▪ Inner skeleton: module pressing high strength alloy
▪ Housing: die-cast flame retardant plastic
▪ Housing surface treatment: baking finished
▪ Housing color: black (white optional)
POWER SUPPLY
▪ Power supply: AC100V-240V; 50/60Hz
▪ Power consumption: Max. 350W
▪ Auto switching power supply unit, 400W, PFC>0.96

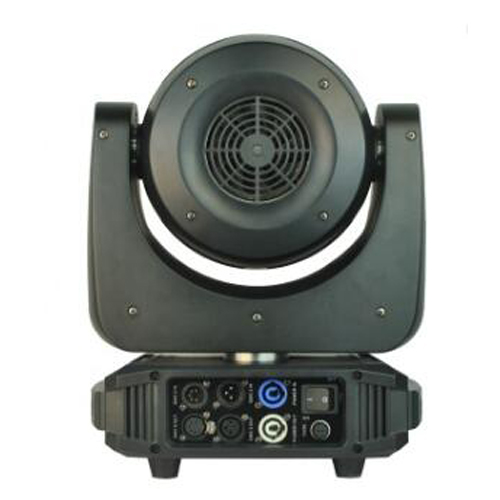

▪ Power In/Out: Powercon, daisy chain
COOLING
▪ Heatsinks in aluminum
▪ Cooling: forced air convection, total 2 fans
▪ Cooling for head: 1 fan
▪ Cooling for base: 1 fan
THERMAL MANAGEMENT
▪ Over temperature protection (58º)
▪ Thermal management system ensures long life of LEDs
▪ Auto reduce light output in case of overheating
▪ Cooling fans intelligent speed regulation
▪ Cooling fans speed auto change according to temperature
▪ Cooling fans auto start once internal temperature ≥32º
▪ Cooling fans auto stop once internal temperature ≤29º
SAFETY PROTECTION
▪ Fuse: 5A 120V, 3A 240V
▪ Electronic protection against short circuit

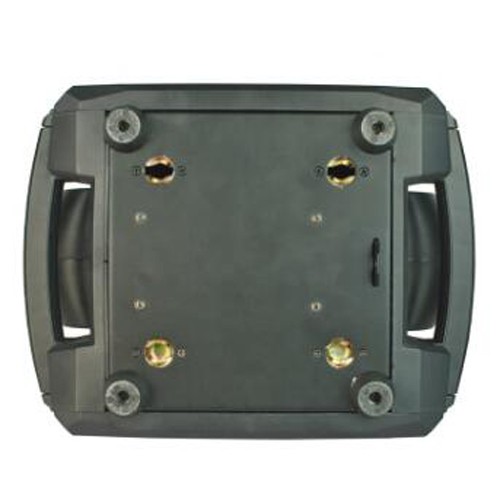

▪ with safety chain through bolt at the bottom
RIGGING & MOUNTING
▪ 2pcs omega brackets with 1/4-turn quick fasteners
▪ Double handles (left & right) for carry and easy handling
▪ Four strong feet for better and stable flat placement
ENVIRONMENT AND PHYSICAL
▪ IP rating: IP20
▪ Environment temperature: -20°C-40°C
▪ Dimensions(mm): W305 x D225 x H370 (head horizontal)
▪ Dimensions(mm): W305 x D225 x H395 (head vertical)
▪ Net weight: 9.0kg
ACCESSORIES
▪ Power input cable: 1.0mm2, length 1.5mtr
▪ Power cable sheath material: PVC
▪ DMX cable included, length 1.5mtr
▪ Hanging omega bracket included (2pcs/pair)
▪ Safety cable excluded (optional)
