Electrical
▪ Input voltage: 100-240 V AC, 50-60 Hz
▪ Max. power consumption: 300 W
Optics
▪ Light source: 19x 15W RGBW LED Array System + 30 pcs 3in1 led
▪ Led Life Expectancy: minimum 50.000 hours
▪ Beam Angle: 8°-50°
Photometric Data
▪ LED refresh rate: Beam 1200 Hz, Aura 4395 Hz
▪ Total luminous output (wide, one-tenth peak): 6000 lumens
▪ Total luminous output (narrow, one-tenth peak): 4300 lumens
▪ Strobe: 1-20/second
Color
▪ Beam color mixing: RGBW
▪ Aura (secondary lens array illumination) color mixing: RGB
Effects
▪ Beam color temperature control: CTO, variable 10 000 – 2500 K
▪ Beam and aura electronic ‘color wheel’ effect: 33 LEE-referenced
▪ colors plus white, variable-speed color-wheel rotation effect and random color
▪ Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects
▪ Pre-programmed effects: Range of independent and synchronized Beam and Aura FX, two combinable
▪ Electronic dimming: Independent beam and aura, four dimming curve options
▪ Zoom: 8° – 50° (one-tenth peak angle)
▪ Pan: 540°
▪ Tilt: 270°
▪ Pan/Tilt Resolution: 16 bit
▪ Pan and tilt speed: Adjustable via onboard control panel and DMX
▪ Pan/Tilt motors: 3 phase, fast and quiet movement
Control and Programming
▪ Control options: Independent or synchronized Beam and Aura control
▪ Control system: DMX, Auto, Sound Activated,Master-slave
▪ Control resolution: 16-bit control of pan & tilt
▪ DMX channels: 14/25
▪ Setting and addressing: Control panel with backlit graphic display
▪ DMX compliance: USITT DMX512-A

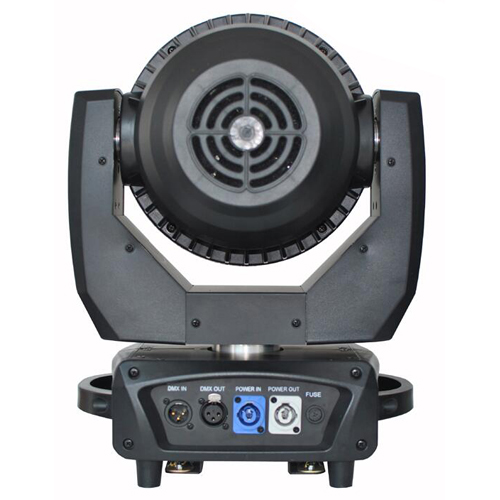

Connections
▪ Data in/out:3-pin( 5-pin XLR optional)
▪ Power in/out: PowerCon
Thermal
▪ Cooling: Automatically adjust cooling-fan
▪ Maximum ambient temperature (Ta max.): 40° C (104° F)
▪ Minimum ambient temperature (Ta min.): 5° C (41° F)
▪ Protection: Overcurrent, overvoltage and overheating
Construction
▪ Color: Black
▪ Housing: High-impact thermoplastic, flame-retardant to UL 94 5VA
▪ Protection rating: IP20
Weight and dimensions
▪ Weight: 9.5 kg
▪ Dimensions (WxHxD): 380x260x475 mm
Accessories
▪ Power input cable included, length 1.2 mtr
▪ DMX cable included, length 1.5 mtr
▪ 2x Omega brackets for fast and comfortable lock
▪ Safety cable included, length 0.65mtr
Approvals
▪ CE
