ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Color Temperature : 6000K
▪ Beam Angle: 5.8-55°
▪ Power consumption: 350W
OPTICS

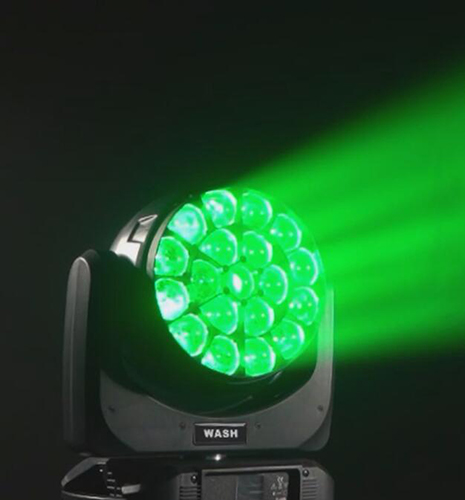

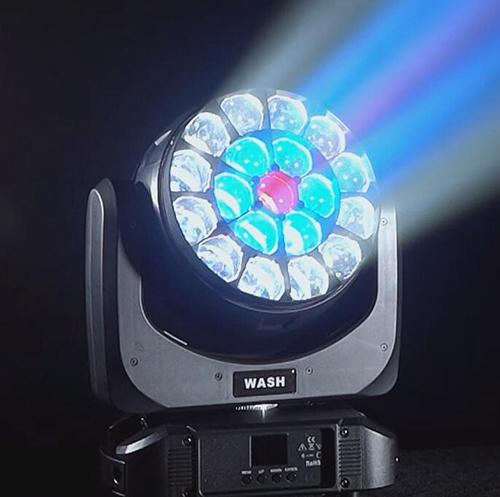

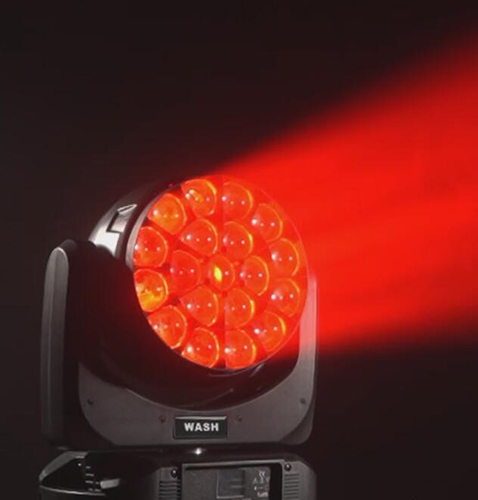

▪ Light Source: 19X20w RGBW 4IN1 LED
▪ Drive Mode: Constant Current
COLOR SYSTEM
▪ Color Mixing: RGBW 4in1
DYNAMIC EFFECTS
▪ Pan and Tilt: 540°/270°
▪ Pan and Tilt Ranges: Pan : 540°/ 360° ,Tiit : 270°
▪ Dimmer: Electronic
▪ Shutter/Strobe: Electronic
▪ Zoom: Motorized
▪ Strobe Rate: 0 to 20 Hz
▪ Focus: Electronic
▪ Color Temperature Presets: Yes
▪ Dim Curves: 4
CONSTRUCTION / PHYSICAL
▪ Dimensions: 338X254X375mm
▪ Weight (single unit):8.5kgs
▪ Exterior Color: Black
▪ Housing Material: ABS high temperature resistant engineering plastics
▪ Display: LCD

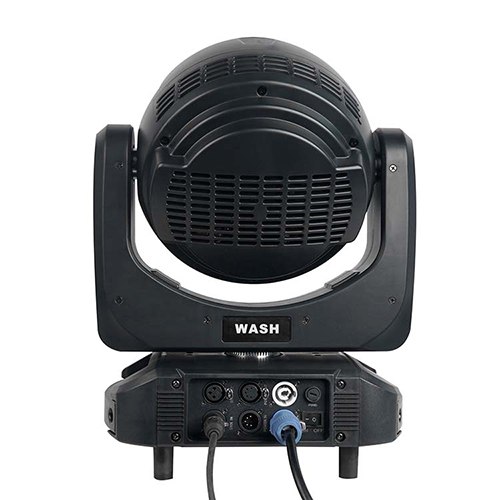

CONNECTIONS
▪ Power In/Out: Powercon
▪ Cable Length (power): 1M
▪ Signal Connection: 3-pin & 5-pin XLR sockets
CONTROL
▪ Control Protocol: DMX512/Auto-Run/Master-Slaver/Sound
▪ DMX Channels: 19/27 CH
COOLING SYSTEM
▪ Cooling: forced air convection, with slient fan,fans’ speeds adjustable
WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C
SAFETY DEVICES
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating
CERTIFICATIONS / QUALIFICATIONS
▪ CE
▪ IP Rating: IP20 (indoor use)
WHAT’S INCLUDED
▪ Power cable 1 pc
▪ Signal cable 1pc
▪ Hanging omega bracket included (2pcs/pair)
▪ Safety cable included
OPTIONAL ACCESSORIES
▪ Clamps
▪ Flightcase
