POWER SUPPLY
▪ Power supply: AC100V-240V; 50/60Hz
▪ Power consumption: Max. 320W
▪ Power In/Out: Powercon, daisy chain
LIGHT SOURCE
▪ LEDs: 19X40W RGBW 4IN1 LEDs
▪ Color temp: 6,000 K
▪ CRI: Ra>70
▪ Drive mode: constant current
▪ Drive current: 2,500mA
OPTICS
▪ Beam angle: Electronic linear zoom: 6°-60°
▪ Optic lens: acrylic
▪ Light guide rods: glass
DIMMER & STROBE
▪ Electronic dimming: 0-100% linear, 16bit smooth dimming
▪ Refresh rate: >1K Hz (Flicker free) , suitable for TV applications and all video recorded events
▪ Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
▪ Built-in strobe macro: Built-in strobe macro and speed adjustable
EFFECTS

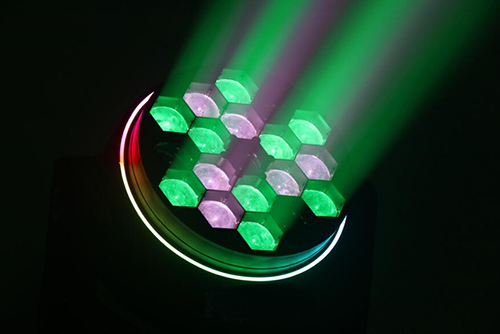

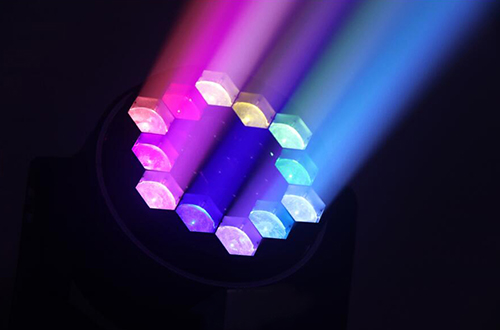

▪ Each LED can be controlled individually. With unique honeycomb designed lens
▪ The front lens can rotate without limitation in forward and reverse direction to create amazing effects
▪ Three operating modes: wash, beam, FX (Kaleido effects)

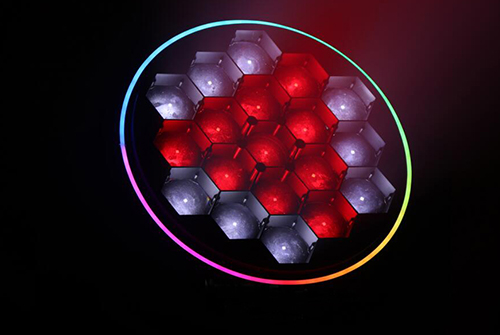

▪ With a extra LED ring for eye-candy effect， LED ring with macro effect
CONTROL MODE
▪ Control protocol: DMX512
▪ Control mode: DMX512,Sound-actived,Master/slave
▪ DMX channels: 22/26/36/78 CH

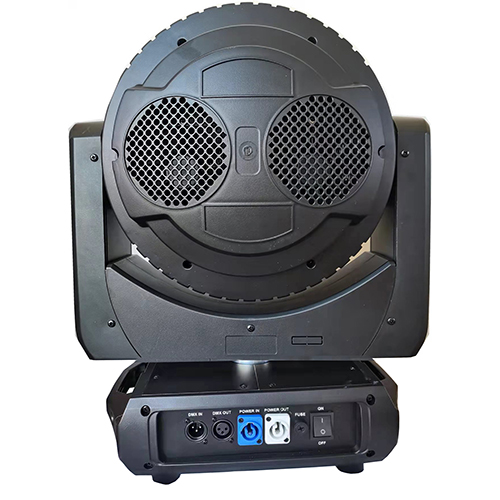

▪ DMX data In/Out: XLR 3Pin(XLR 5Pin optional)
DISPLAY & MENU SETTING
▪ Display: LCD colorful display
▪ Setting and addressing: via 5-menu-button
▪ Menu language: English/Chinese
PAN-TILT
▪ Pan: Max 540°, with 16 bit resolution
▪ Tilt: Max 220°, with 16 bit resolution
▪ Pan/Tilt: automatic Pan/Tilt reposition
▪ Pan/Tilt motors: 3 phase, fast and quiet movement
BODY & HOUSING
▪ Housing: plastic+aluminium+iron
▪ Housing surface: baking finished treatment
▪ Housing color: black (white optional)
COOLING
▪ Heatsinks: Heatsinks in aluminum
▪ Cooling: silent fan
THERMAL MANAGEMENT
▪ Thermal management:
Over temperature protection (58º)
Cooling fans intelligent speed regulation
Auto reduce light output in case of overheating
Thermal management system ensures long life of LEDs
SAFETY PROTECTION
▪ Fuse: 5A 120V, 3A 240V
▪ Electrical protection: Electronic protection against short circuit
▪ Rigging protection: with safety chain through bolt at the bottom
RIGGING & MOUNTING
▪ Rigging: 2pcs omega brackets with 1/4-turn quick fasteners
▪ Mounting: Four strong feet for better and stable flat placement
ENVIRONMENT AND PHYSICAL
▪ IP rating: IP20
▪ Environment temperature: -20°C-40°C
▪ Dimensions(mm): W405 x D234 x H440
▪ Net weight: 15.2 kg
ACCESSORIES
▪ Power input cable: 1.0mm2, PVC sheath, length 1.5mtr
▪ DMX cable: DMX cable included, length 1.5mtr
▪ Hanging omega bracket: included (2pcs/pair)
▪ Safety cable: not included (optional)
