ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Color Temperature : 2700K-6500K
▪ Beam Angle: 4°- 60°
▪ Power consumption: 320W
OPTICS
▪ Light Source: 7X40W RGBW 4IN1
▪ Drive Mode: Constant Current
COLOR SYSTEM
▪ Color Mixing: RGBW 4in1
▪ Uniform RGBW color mixing system and rainbow effect
▪ White balance can be adjusted manually
DYNAMIC EFFECTS
▪ Pan and Tilt: 540°/220°
▪ Pan and Tilt Ranges: Pan : 540°/ 640° ,Tiit : 220°
▪ Dimmer: Electronic
▪ Shutter/Strobe: Electronic
▪ Zoom: Motorized
▪ Strobe Rate: 0 to 20 Hz
▪ Focus: Electronic
▪ Color Temperature Presets: Yes
▪ Dim Curves: 4
CONSTRUCTION / PHYSICAL
▪ Dimensions: 452X278X208mm
▪ Weight (single unit):9.5kgs
▪ Exterior Color: Black
▪ Housing Material: ABS high temperature resistant engineering plastics
▪ Display: LCD

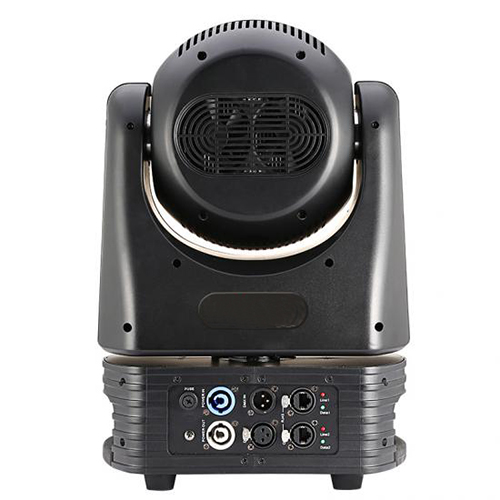

CONNECTIONS
▪ Power In/Out: Powercon
▪ Cable Length (power): 1M
▪ Signal Connection: 3-pin (5-pin optional)
CONTROL
▪ Control Protocol: DMX512/Artnet/Master-Slaver/Sound active
▪ DMX Channels: 19/27/45/55CH
COOLING SYSTEM
▪ Cooling: forced air convection, with slient fan,fans’ speeds adjustable
WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C
SAFETY DEVICES
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating
QUALIFICATIONS
▪ IP Rating: IP20 (indoor use)
WHAT’S INCLUDED
▪ Power cable 1 pc
▪ Signal cable 1pc
▪ Hanging omega bracket included (2pcs/pair)
▪ Safety cable included
OPTIONAL ACCESSORIES
▪ Clamps
▪ Flightcase
