LMHWZB-760A2(4IN1)B

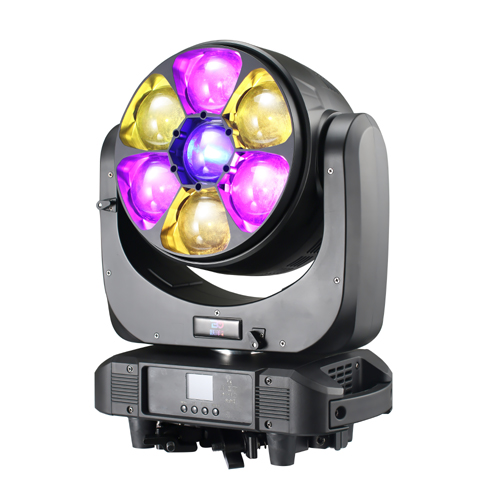

LED Moving Head Wash Zoom B-Eye, 7X60W RGBW 4IN1,3°- 45°,IP20, Black Shell

ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Color Temperature : 2800K-10000K
▪ Beam Angle: 3°- 45°
▪ Power consumption: 500W

OPTICS
▪ Light Source: 7X60W RGBW 4IN1, 50,000 hours life expectancy
▪ Drive Mode: Constant Current

COLOR SYSTEM
▪ Color Mixing: RGBW 4in1

DYNAMIC EFFECTS
▪ Pan and Tilt: 540°/270°
▪ Pan and Tilt Ranges: Pan : 540°/ 360° ,Tiit : 270°
▪ Dimmer: Electronic
▪ Shutter/Strobe: Electronic
▪ Zoom: Motorized
▪ Strobe Rate: 0 to 20 Hz
▪ Zoom: Motorized
▪ Focus: Electronic
▪ Strobe Rate: 0 to 20 Hz
▪ Color Temperature Presets: Yes
▪ Dim Curves: 4

CONSTRUCTION / PHYSICAL
▪ Dimensions: 376x280x422.5mm
▪ Weight (single unit):16.5kgs
▪ Exterior Color: Black
▪ Housing Material: Plastic
▪ Display: LCD

CONNECTIONS
▪ Power In/Out: Powercon
▪ Cable Length (power): 1M
▪ Signal Connection: 3pin (5pin optional)

CONTROL
▪ Control Protocol: Auto, Sound Active, Slave Master, DMX
▪ DMX Channels: 21/23/35/42/49/51/56CH

COOLING SYSTEM
▪ Cooling: forced air convection, with 1 slient fan,fans’ speeds adjustable

WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C

SAFETY DEVICES
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating

CERTIFICATIONS / QUALIFICATIONS
▪ CE
▪ IP Rating: IP20 (indoor use)

WHAT’S INCLUDED
▪ Power cable 1 pc
▪ Signal cable 1pc
▪ Hanging omega bracket included (2pcs/pair)
▪ Safety cable included

OPTIONAL ACCESSORIES
▪ Clamps
▪ Flightcase
