LMMHB-80A1B

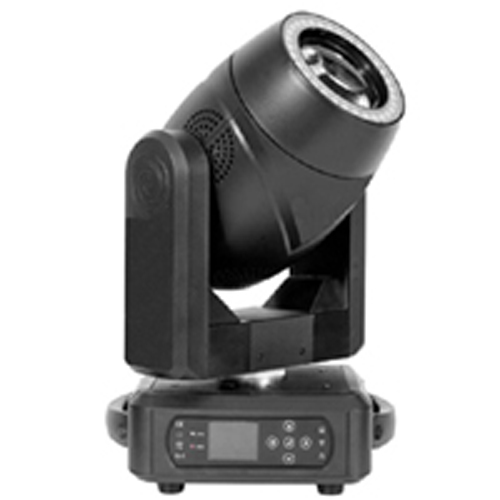

LED Mini Moving Head Beam, 80W,32X0.5W RGB 3IN1,IP20,Black Shell

Source
•LEDs: 1X80W white + 32pcs 0.5W RGB 3in1
•LED Life Expectancy: Minimum 50.000 hours
•Drive Mode: Constant Current

Optics
•0-100% linear led dimmer
•improved optics and flat beam field

Color System
•13 colors+ white, color flowing, macro effect

Gobo System
•1 fixed pattern plate with 13 fixed patterns+ white light Effect of the configuration

Prism
•1 rotating 8 prism

Effect:
•16 Bit Smooth and Precise Resolution for PAN/TILT Movement
•Pan/Tilt: 540°/ 240°
•preset variable/random strobe and dimming pulse effect

Control and programming
•Control Mode: DMX, autorun, Master/Slave, Sound-activate
•Control Channels: 22CH
•Display: LCD
•Onboard programming enables programming without external DMX controller

Power Supply:
•Power supply: Electronic auto-ranging
•Power Input Rating: 100-240 V AC, 50-60 Hz
•Power consumption: 250W
•Power Connectors In/Out:Powercon

Data Connection:
•XLR 3Pin(XLR 5Pin optional)

Body
• Housing: die-cast flame retardant plastic
• Housing color: black (white optional)
• Housing surface treatment: oxidized

Safety Devices
• Power failure memory
• Electronic protection against short circuit

Work Enviroment
•Enviroment temperature: -25 °C -40 °C

Cooling System
• Cooling: forced air convection with 1 fan

Internal protection
• IP rating: IP20

Mechanical Specification
•Length: 250 mm
•Width: 180 mm
•Height: 405 mm
•Net Weight: 7.5 kgs

Approval:
•CE

Accessories
• Power input cable included, length 1.3mtr
• Power cable: 1.5mm2, PVC
• DMX cable not included (optional)
• Safety cable not included (optional)
• Hanging bracket included (1pc)
