ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Power consumption: 80W
▪ Drive Mode: Constant Current
OPTICAL
▪ Light Source: 1X60W(RGBW 4IN1)+88X0.2W (SMD 5050 RGB 3IN1), 50,000 hours life expectancy
▪ Beam Angle: 6.5°
▪ Color temp :8,000K
▪ Illuminance: Red 1220lux @ 3 m, Green 2800 lux @ 3 m, Blue 160 lux @ 3 m, White 2800 lux @ 3 m
COLOR SYSTEM
▪ Color Mixing: RGBW (4IN1)
DYNAMIC EFFECTS
▪ Strobe: 0-25Hz
▪ Dimmer: Electronic
▪ Standalone Color Mixing: Yes
▪ Color Temperature Presets: Yes
▪ Dim Modes: 4
▪ Built-in Automated Programs: Yes
▪ Pan: 540°
▪ Tilt: 200°
CONSTRUCTION / PHYSICAL
▪ Dimensions: 264.5x168x368 mm
▪ Weight (single unit):5.1 kgs
▪ Exterior Color: Black
▪ Housing Material: Aluminum

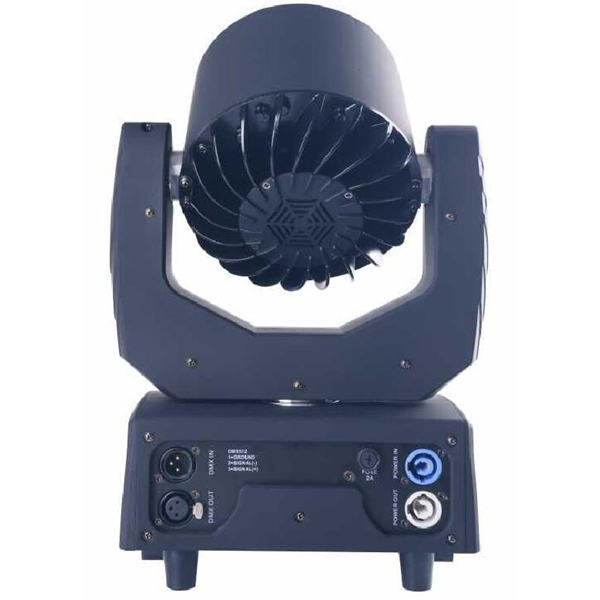

CONNECTIONS
▪ Power Connection: IEC
▪ Cable Length (power): 1M
▪ Signal Connection: 3pin ( 5pin optional)
CONTROL
▪ Control Protocol: DMX, Master-Slave, Auto, Sound
▪ DMX Channels: 12/27/29 CH
COOLING SYSTEM
▪ Cooling: Silent fan
WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): 5° C
SAFETY DEVICES
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating
CERTIFICATIONS / QUALIFICATIONS
▪ CE
▪ IP Rating: IP20 (indoor use)
WHAT’S INCLUDED
▪ LMMHBS-60A1(4IN1)B
▪ Power cable 1 pc
▪ Signal cable 1 pc
OPTIONAL ACCESSORIES
▪ Clamps
▪ Safety Chain
▪ Flightcase
