LMMHW-120A1(4IN1)B

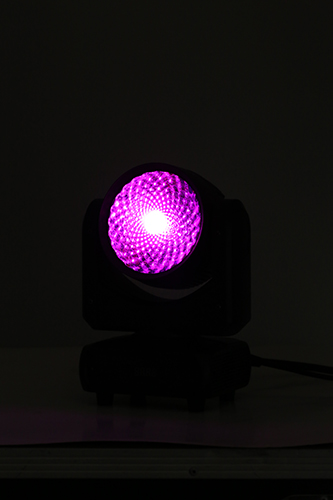

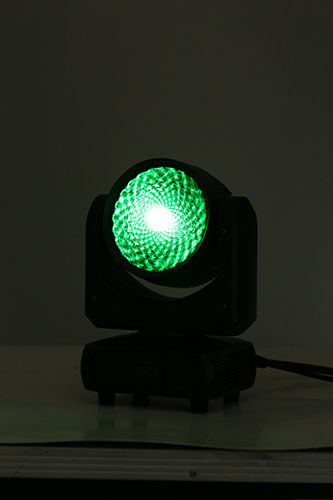

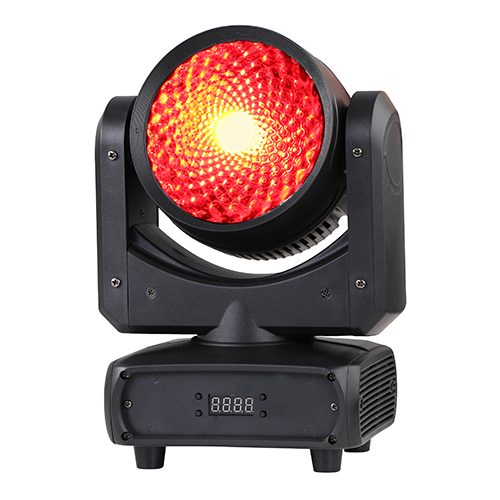

LED Mini Moving Head Wash, 1X120W,RGBW 4IN1, 24X0.2W RGB 3IN1 LED, IP20, Black Shell

Source
• LEDs: 1X120W RGBW 4IN1, 24X0.2W RGB LED
• LED Life Expectancy: Minimum 50.000 hours
• Drive Mode: Constant Current

Optics
• 0-100% linear led dimmer
• Beam angle:  24 °

Photometric Data
• R:  24°  2m@830lux, 4m@181lux, 6m@83lux, 8m@47lux
• G:  24°  2m@1920lux, 4m@442lux, 6m@198lux, 8m@134lux
• B:  24°  2m@390lux, 4m@91lux, 6m@40lux, 8m@25lux
• W:  24°  2m@2200lux, 4m@520lux, 6m@234lux, 8m@143lux
• RGBW:  24°  2m@4180lux, 4m@1020lux, 6m@420lux, 8m@244lux

Movement
• Pan/tilt operation
• 16bit fine-tuning
• Smooth and precise positioning
• Pan:540°,Tilt:205°
• Pan and Tilt speed adjustable
• The scanning position can be memorized and will automatically reset when there is no expected operation
• Pan and Tilt with error correction function

Color
• RGBW RGB background color

Specifications
• DMX Chanle:22CH
• 2 control model :DMX512、master-slave
• Dimming: 0-100% 16bit dimming
• Background light effect: capable of chasing and running
• 0-20Hz flicker, pulse flicker, random flicker effect

Display
• LED display screen operating

Control and programming
• Settings and Addressing: RDM
• Fan cooling (fan speed changes with temperature)
• LED temperature detection system to protect the lifespan of LED chip

Power Supply:
• Power supply: Electronic auto-ranging
• Power Input Rating: 100-240V, 50/60 Hz
• Power consumption: 120W
• Power Connectors In/Out: PowerCON power cord input and output

Data Connection:
• Sinal Connectors In/Out: 3 Pin XLR inputs and outputs (5 Pin XLR optional)

Body
• Housing: ABS plastic fireproof material
• Housing color: black (white optional)

Safety Devices
• Power failure memory
• Electronic protection against short circuit

Work Enviroment
• Enviroment temperature: -25 °C -40 °C

Cooling System
• Cooling: forced air convection with 1 fan

Internal protection
• IP rating: IP20

Mechanical Specification
• Length: 254 mm
• Width: 204 mm
• Height: 147 mm
• Net Weight: 3.6 kgs

Accessories
• Power input cable included, length 1.3mtr
• Power cable: 1.5mm2, PVC
• DMX cable not included (optional)
• Safety cable not included (optional)
