LIGHT SOURCE
▪ LEDs: COB 60W, RGBW 4IN1
▪ Color temp: 1800 K – 10000 K
▪ Color rendering index(CRI): Ra>90
▪ Luminous flux: Max. 3800 lm
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current
▪ Drive current (mA): Max. 1460
OPTICS
▪ Beam angle: 20°- 50°
▪ Flicker free (refresh rate >100K Hz)
▪ Light output (full Bright):
20° 2290Lux@2mtr; 560Lux@4mtr
50° 761Lux@2mtr; 195Lux@4mtr
COLORS
▪ Mixing color: RGBW 4IN1
EFFECTS
▪ 16 bit smooth dimming
▪ Electronic dimmer: 0-100% linear
▪ Electronic strobe: 1-20 flashes/sec
▪ PWM Dimming Frequency Adjust:
▪ Color Calibration System (CCS) to correct the color of each lamp
CONTROL AND PROGRAMMING
▪ Control mode: RDM; DMX512; HSIC; Master/Slave; Stand-alone
▪ Onboard programming functionality enables programming without external DMX controller

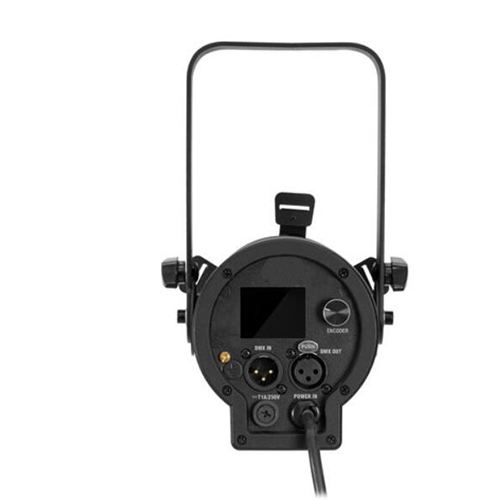

▪ Setting and addressing: OLED
▪ DMX Data In/Out: XLR 3Pin (XLR 5Pin is optional)
▪ DMX Channel: 6/11CH
PAN-TILT
▪ Tilt: -135º～+135º
BODY
▪ Housing: Aluminum
▪ Housing color: black (white optional)
▪ Housing surface treatment: baking finished
POWER SUPPLY
▪ Power consumption: Max. 60W
▪ Auto switching power supply unit
▪ Power supply: AC100V-240V, 50/60Hz (auto-ranging)
▪ Power In/Out: 3Pin waterproof, daisy chain
▪ Power linking: up to 7units@120V and 14units@230V
COOLING & THERMAL MANAGEMENT
▪ Thermal management system ensures long life of LEDs
▪ Automatic switch off light source in case of overheating or failed operation of cooling system
▪ Heatsinks in aluminum for LED source
▪ Cooling: 1 pc silent fan
SAFETY DEVICES
▪ Power failure memory
▪ Electronic protection against short circuit
▪ with safety chain through holes at the yoke
RIGGING
▪ with single mounting yoke
ENVIRONMENT AND PHYSICAL
▪ IP rating: IP20
▪ Environment temp: -20°C-45°C
▪ Dimensions(mm): L417 x W117 x H155 (with yoke)
▪ Net weight: 3.2kgs
ACCESSORIES
▪ Power input cable included, length 1.0mtr
▪ Power cable: 0.75mm2, PVC
▪ DMX cable not included (optional)
▪ Safety cable not included (optional)
