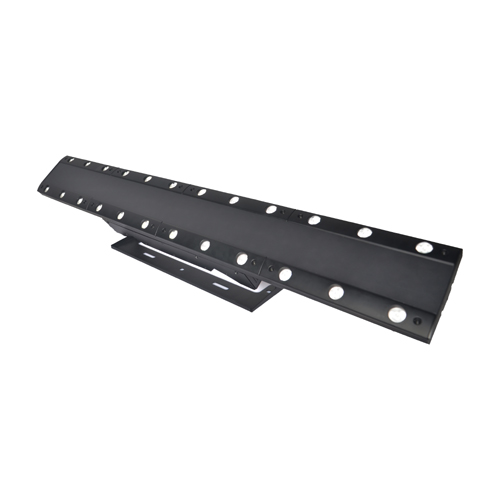

LED Pixel Bar
LED Pixel BarLED Pixel BarLED Pixel BarLED Pixel Bar

LPB-243(3IN1)A1B

LED Pixel Bar, 24X3W Warm White LED, 120pcsX0.5W RGB LED, 4.5°,IP20,Black Shell

Categories: .

ELECTRICAL
▪ AC power: 100-240 V nominal, 50/60 Hz
▪ Typical total power consumption: 150 W

OPTICS
▪ Light source: 24X3W Warm White LED, 120pcsX0.5W RGB LED
▪ Beam Angle:4.5º
▪ Minimum LED lifetime: 50 000 hours (to >70% luminous output)

DYNAMIC EFFECTS
▪ Color mixing: RGB 3IN1
▪ Electronic dimming: 0 – 100%

CONTROL AND PROGRAMMING
▪ Control options: DMX512,Art-Net
▪ DMX channels: 7/28/32/384
▪ DMX address setting: Control panel with LED display
▪ Stand-alone programming: Control panel with LED display
▪ Protocol: DMX512

CONSTRUCTION
▪ Housing: Aluminum+Plastic
▪ Color(s): Black
▪ Protection rating: IP20

INSTALLATION
▪ Mounting: single bracket, surface for truss mount
▪ Orientation: Any
▪ Location: Indoor

CONNECTIONS
▪ AC power in/thru: PowerCon
▪ DMX data in/thru: 3-pin XLR (5-pin XLR Optional)

THERMAL
▪ Cooling: Convection
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C

PHYSICAL
▪ Length: 1000 mm
▪ Width: 115 mm
▪ Height: 155 mm
▪ Weight: 5.78 kg

APPROVALS
▪ CE
