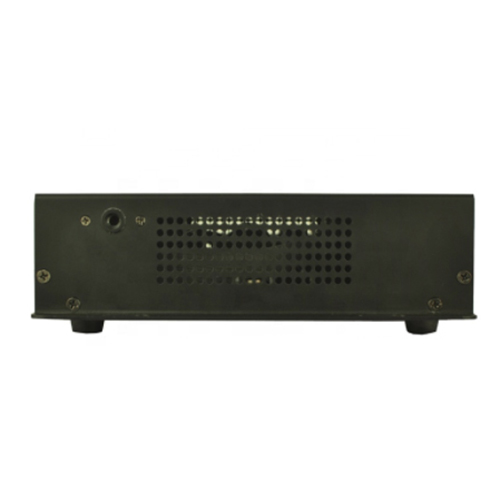

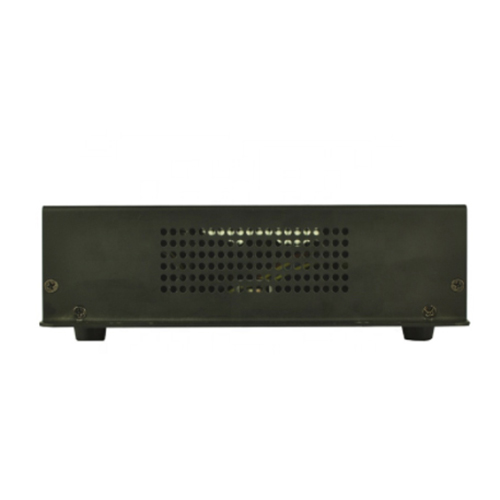

rearside 1side 2side 3bottom

LPB-40(3IN1)A1B-CB

ArtNet LED Pixel Controller Re LED Pixel Strip 40

Categories: .

CONTROL MODE
• Control protocol: DMX512, Art-Net, Kling-Net
• Control mode: Art-Net, Kling-Net, DMX, Auto, Master/Slave
• DMX channels: 7/16/48/82/480CH

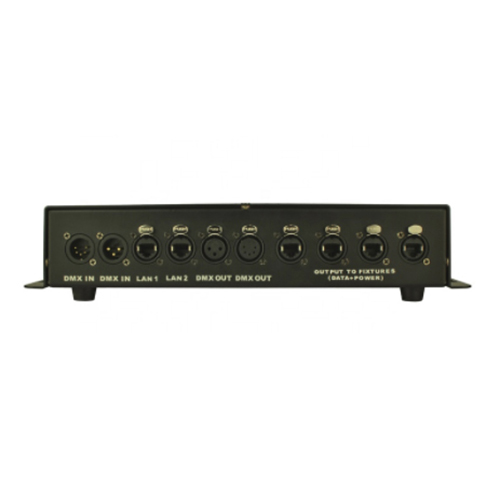

• DMX data In/Out: both XLR 3Pin and XLR 5Pin
• Ethercon data In/Out: RJ45 for ArtNet, KlingNet connection
• Power+Data 2in1: output to fixtures: DC24V, 4pcs

DISPLAY & MENU SETTING

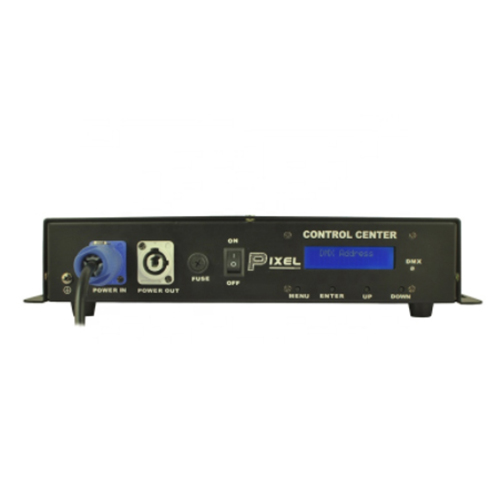

• Display: 2.6inch blue LCD backlit, Display auto OFF after 20sec no setting action
• Setting and addressing: via 4-menu-button
• Menu language: English
• Factory default setting: can be set via menu

POWER SUPPLY
• Power supply: AC100V-240V; 50/60Hz
• PSU: Auto switching power supply unit, 450W
• Power In/Out: Powercon, daisy chain

COOLING
• Cooling: natural convection, no fan, no noise

SAFETY PROTECTION
• High voltage protection: Yes
• Fuse: 10A 250V, 5 x 20mm
• Short circuit protection: Yes
• Signal isolating protection: Yes

BODY & HOUSING
• Housing: aluminium alloy
• Housing color: black

RIGGING & MOUNTING

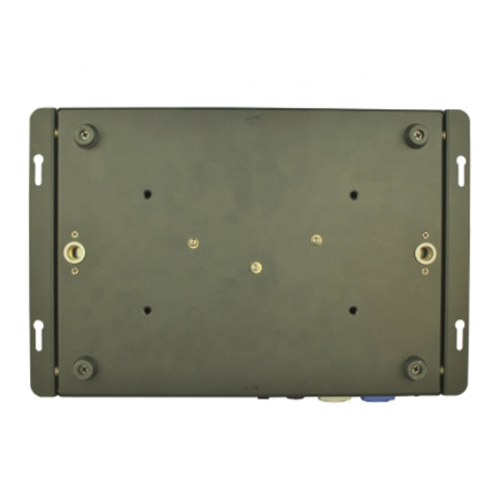

• Rigging: Two M10 rigging holes at the bottom
• Wall mounting points: 4 holes at the bottom
• Flat placement: Four strong feet for better and stable flat placement

ENVIRONMENT AND PHYSICAL
• IP rating: IP20
• Environment temperature: -20°C-40°C
• Dimensions(mm): W345 x D240 x H74
• Net weight: 1.9kg

ACCESSORIES
• Power input cable: 0.75mm2, PVC sheath, length 1.2mtr
• DMX cable: included, length 2.0mtr

One controller max linking 16pcs LED Pixel Strip 40
