LIGHT SOURCE
• LEDs:40pcs 0.5W, SMD5050, RGB 3-in-1
• Luminance: 828 Nits
• Drive mode: constant current
• Drive current: 20mA
OPTICS
• View angle: 120°
• Front filter: PMMA, Filter Milky, Square
DIMMER & STROBE
• Electronic dimming: 0-100% linear, 16bit smooth dimming
• Refresh rate: >3K Hz (Flicker free) , suitable for TV applications and all video recorded events
• Electronic strobe: 1-20 flashes/sec
EFFECTS
• Color change: Built-in color changing macro, speed adjustable
• Demo programmes: Built-in 30 demo programmes, speed adjustable
• Pixel control: each color of each LEDs can be controlled alone
• Pixel pitch: 25mm
• Pixel array: 1X40
CONTROL MODE
• Control protocol: DMX512, Art-Net, Kling-Net
•Power Input Rating: 100-240 V AC, 50-60 Hz
•Power consumption: 25W
•Art-Net channels: 120CH
BODY & HOUSING
• Housing:aluminium alloy
• Housing surface:baking finished
• Housing color: black (white optional)
POWER SUPPLY
• Power supply: DC24V
• Power consumption: 25W
• Data In/Out: RJ45, daisy chain
RIGGING & MOUNTING

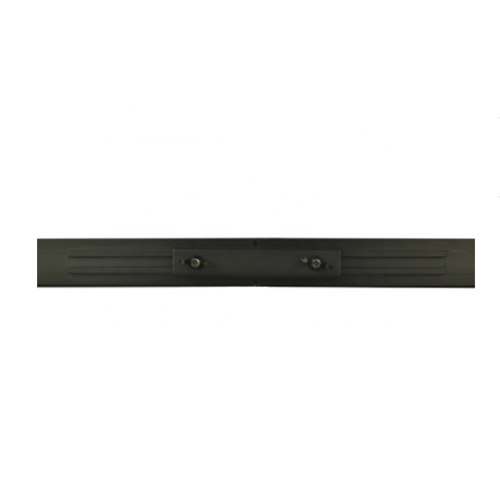

• Mounting: Single mounting yoke
SPLICING & ASSEMBLING
• Splicing: Convenient splicing design
ENVIRONMENT AND PHYSICAL
• IP rating: IP33
• Environment temperature: -20°C-40°C
• Dimensions(mm): L1000 x W35 x H110 (with yoke)
• Net weight: 1.1kg
ACCESSORIES
• Power+Data 2in1 cable: included, length 1.5mtr
