OPTICAL
▪ Light Source: 1 LED (WW) 300 W, 3200 K, 50,000 hours life expectancy
▪ CRI: 85
▪ Beam Angle: 19°
▪ Power consumption: 350W
▪ LUX: 27000lm-28000lm
DYNAMIC EFFECTS
▪ Dimmer: Electronic
▪ Shutter/Strobe: Electronic
▪ Strobe Rate: 0 to 20 Hz
▪ Color Temperature Presets: No
▪ Dim Modes: 4
▪ Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
▪ Dimensions: 770x330x340 mm
▪ Weight (single unit):10.5kgs
▪ Exterior Color: Black
▪ Housing Material: Aluminum die-cast

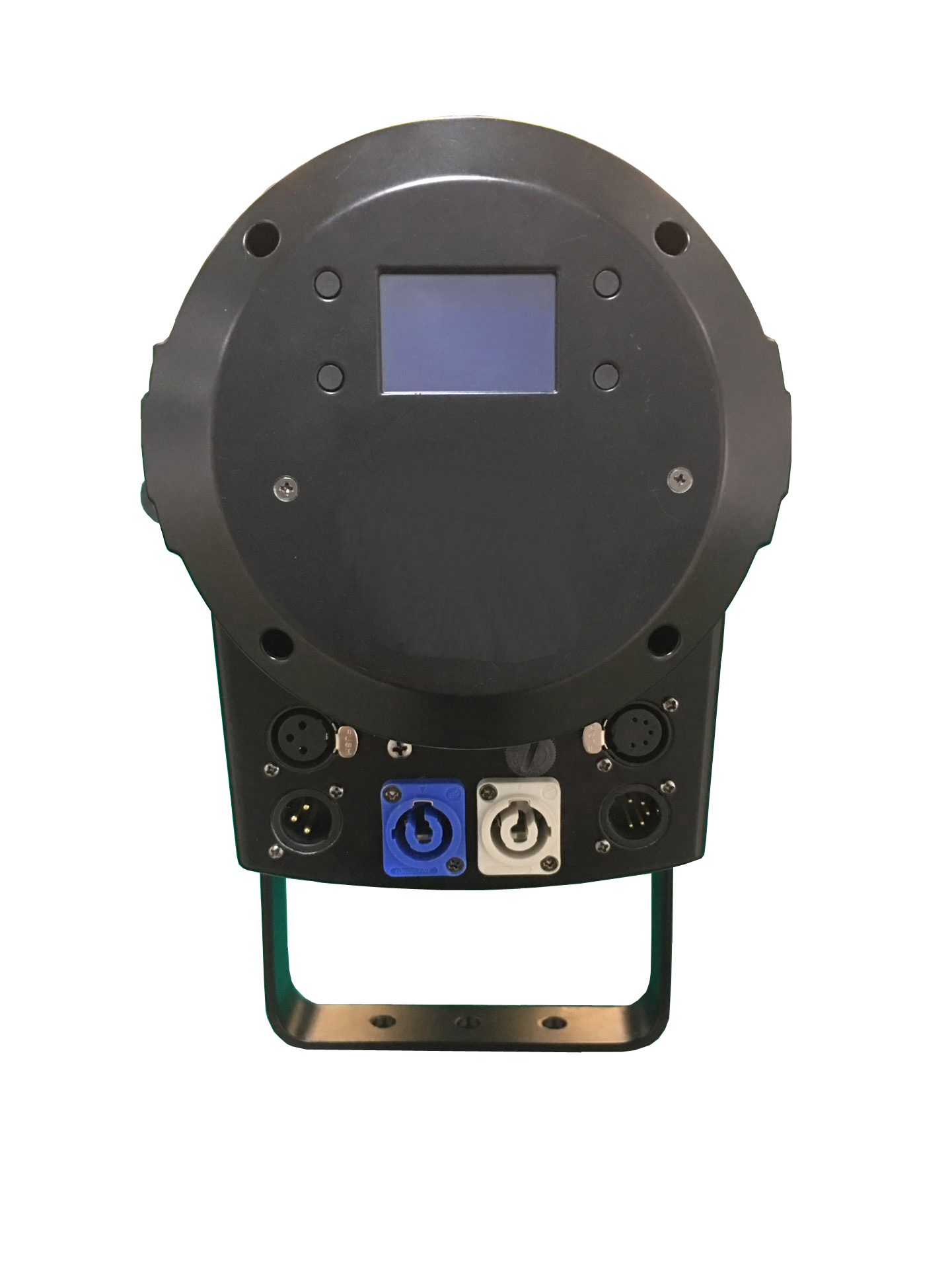

CONNECTIONS
▪ Power Connection: Powercon
▪ Cable Length (power): 1M
▪ Signal Connection: 3pin & 5pin
CONTROL
▪ Control Protocol: DMX
▪ DMX Channels: 1/2 CH
ELECTRICAL
▪ Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
▪ Power Linking: 6 units @ 120 V; 10 units @ 230 V
WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): 5° C
CERTIFICATIONS / QUALIFICATIONS
▪ CE
▪ IP Rating: IP20 (indoor use)
WHAT’S INCLUDED
▪ LPSE-300A2(WW)B
▪ Power cable 1 pc
▪ Signal cable 1 pc
▪ Gobo Holder
▪ Gel frame(i.e. filter frame)
OPTIONAL ACCESSORIES
▪ Manual iris
▪ Clamps
▪ Safety Chain
▪ Flightcase
