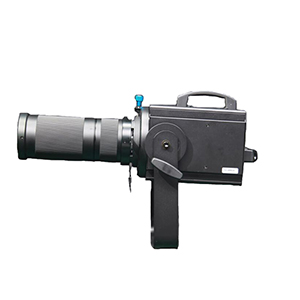

LPSZ-100A1(4IN1)B-925

LED Profile Spot Zoom, 100W,9°-25°,RGBW 4IN1, IP20, Black Shell

LIGHT SOURCE
LEDs: 100W
Color temp: RGBW 4IN1
CRI: 95
Luminous flux: 4500lm
Drive mode: constant current
Drive current: 4.1A

OPTICS
Beam angle: 9°-25°
Light ouput (full right):
9°:  5699Lux@2mtr
25°: 3177Lux@2mtr
Optic lens: Glass

DIMMER & STROBE
Electronic dimming: 0-100% linear
Refresh rate: 1200-20000K Hz
Electronic strobe: 1-20 flashes/sec.
Built-in strobe macro: Speed adjustable

DIMMER & STROBE
Control protocol: DMX512
Control mode: RDM,DMX512,HSIC,MASTER/SLAVE,STAND ALONE
DMX channels: 9/5
DMX data In/Out: XLR 3Pin(XLR 5Pin Optional)

DISPLAY & MENU SETTING
Display: LCD
Setting and addressing: 4 buttons
Menu language: English

PAN-TILT
Tilt: ±150º (yoke)

BODY & HOUSING
Housing:  Aluminium+Iron+ABS
Housing surface: Baking finish
Housing color: Black(White Optional)

POWER SUPPLY
Power supply: AC100V-240V; 50/60Hz
Power consumption:120W
Power Supply Unit (PSU): 120W
Power In/Out: Powercon
Power linking: 18pcs@120V  18pcs@230V

COOLING
Cooling: Slient fan with tempeture control, Fan will will work till 57°C , fan speed can’t be adjusted

THERMAL MANAGEMENT
Overheat protection
It automatically turns off the light source when overheating
The temperature control system will prolong the life of the light source

SAFETY PROTECTION
Fuse:5A 230V
Electrical protection:  Electronic anti-short-circuit protection
Rigging protection:    with safety chain through holes at the yoke

RIGGING & MOUNTING
Mounting: Single Yoke

ENVIRONMENT AND PHYSICAL
IP rating: IP20
Environment temp: -20°C-45°C
Dimensions: 46.2X17.8X24cm
Net weight: 4.2kgs

ACCESSORIES
Power input cable: included ,length 1.2mtr
DMX cable: included, length 1.0mtr
Gel frame (filter frame): N/A
Gobo holder: Included
Manual iris: N/A
Safety cable: Optional
