Optical
▪ Light source：1x100W COB 2700K+5000K 2IN1
▪ Beam Angle： 11°-35°
▪ Life expectancy: rated at 50,000 hrs.
▪ LUX: LED Lux@2m 30000(11˚); 25000 (15˚); 15000 (20˚); 10000 (25˚); 7700 (30˚);5500 (35˚)
LUX: LED Lux@3m 11500(11˚); 10000 (15˚); 7200 (20˚); 4500 (25˚); 3450 (30˚);2600 (35˚)
▪ CRI: 90
Electrical
▪ Power supply: Electronic auto-ranging
▪ Power Input Rating: 100-240 V AC, 50-60 Hz
▪ Power consumption: 125W
Color System
▪ Color Temperature: 2700K-5000K
Effects
▪ Color: white
▪ Strobe: 1-25 Hz
▪ Dimming : 0-100% linear

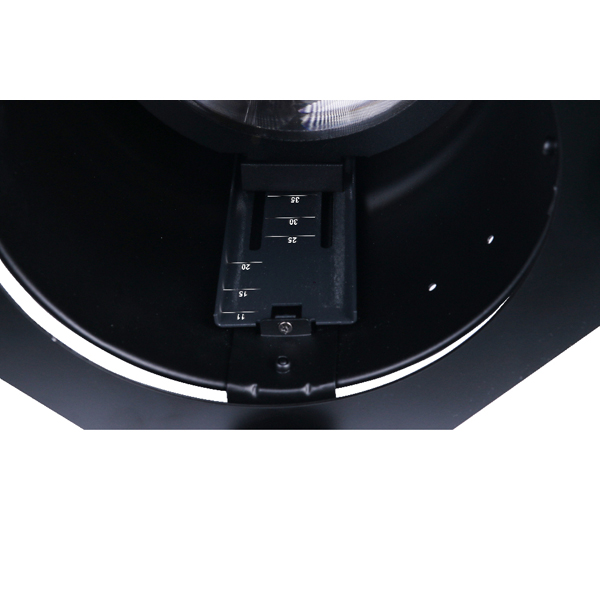

▪ Beam Angle： 11°-35°(stepless manual zoom)
Control and Programming
▪ Control Mode: DMX/Master-Slave
▪ DMX channels: 1CH/2CH/3CH/4CH/8CH
▪ Display: LED

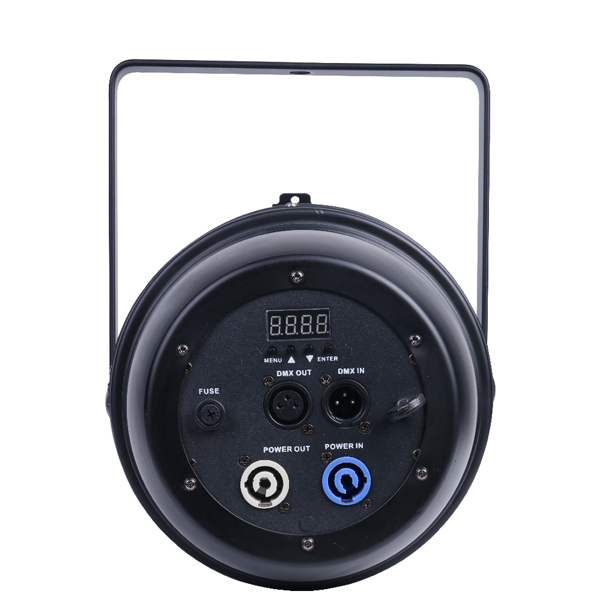

Connections
▪ Data in/out:3-pin （5-pin XLR optional)
▪ Power in/out: PowerCon
Cooling System
▪ Cooling: slient fan
Work Enviroment
▪ Maximum ambient temperature (Ta max.): 60° C
▪ Minimum ambient temperature (Ta min.): -40° C
Construction
▪ Housing: Aluminum
▪ Color: black (white optional)
▪ Housing surface treatment: metal baking finished
▪ Protection rating: IP20
Mechanical Specification
▪ Length: 491 mm
▪ Width: 275 mm
▪ Height: 224 mm
Weight
▪ Weight:3.4kg
Accessories
▪ Power cable included, length 1.0mtr
▪ DMX cable included
Approvals
▪ CE
