Electrical
▪ Power supply: Electronic auto-ranging
▪ Power Input Rating: 100-240 V AC, 50-60 Hz
▪ Power consumption: 450W
▪ PF:98

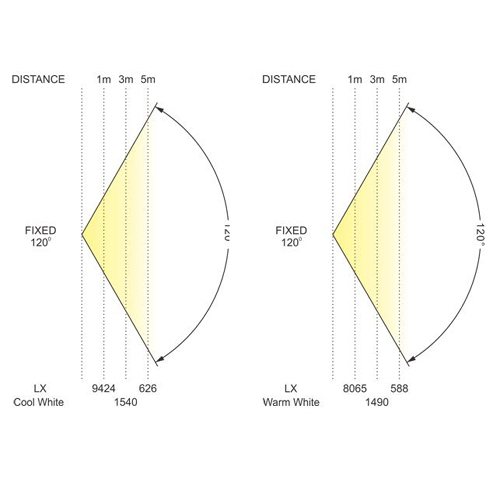

Optics
▪ Light source: 1008X0.5W, 5050 SMD LEDs,Warm White, 50,000 hrs.
▪ Light ouput : 1490Lux@3mtr; 588Lux@5mtr
▪ Beam Angle: 120°
▪ Drive Mode: Constant Current
Color System
▪ Color: Warm White
Effects
▪ Strobe: 0-25Hz
▪ Dimming : 0% – 100%
▪ 2 row sections led, each section can be control individually
Control
▪ Protocol: DMX512
▪ DMX Channels: 6/11
▪ Operating Modes: DMX512, Master-Slave, Auto, Sound

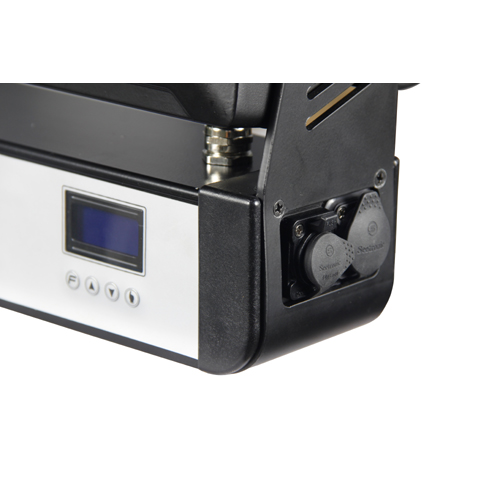

▪ LCD 4-button control panel

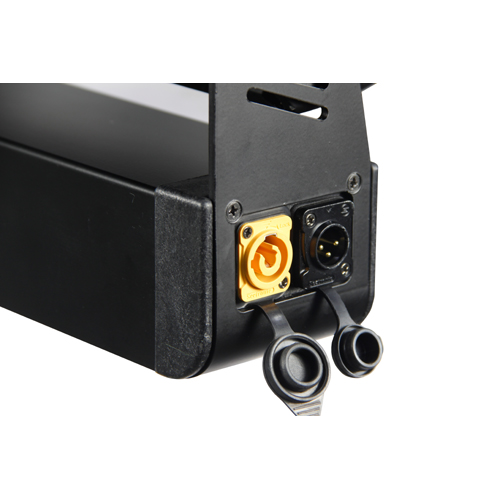

Connections
▪ Input: 3-pin XLR Male (XLR 5Pin is optional)
▪ Output: 3-pin XLR Female (XLR 5Pin is optional)
▪ Power in/out: PowerCon
Cooling System
▪ Cooling: waterproof fan
Work Enviroment
▪ Maximum ambient temperature (Ta max.): 40° C (104° F)
▪ Minimum ambient temperature (Ta min.): 5° C (41° F)
Safety Devices
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating
Construction
▪ Housing: die-cast aluminium
▪ Shell: Black (white optional)
▪ Housing surface treatment: baking finished
▪ Protection rating: IP65

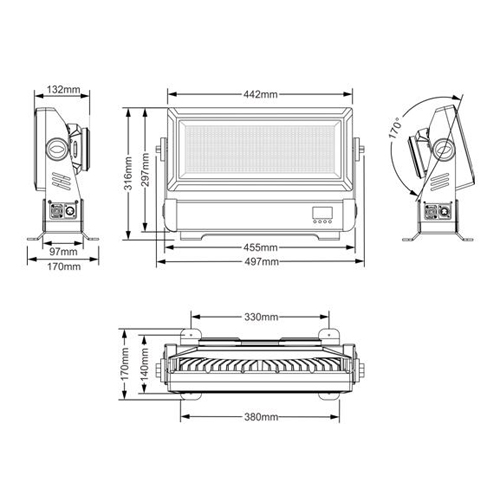

Mechanical Specification
▪ Length: 497 mm
▪ Width: 170 mm
▪ Height: 316 mm
Weight
▪ Weight: 10kg
Accessories
▪ Power In/Out cable included, length 1mtr
▪ Power in conversion cable not included (optional)
▪ DMX in conversion cable not included (optional)
▪ Power extention cable not included (optional)
▪ DMX extention cable not included (optional)
▪ Hanging bracket included, 1pc
▪ Safety cable not included (optional)
Approvals
▪ CE
