Electrical
Power supply: Electronic auto-ranging
Color Temperature : 5600k
Beam Angle: 15°-55°
Power consumption: 250W
CRI: ≥90
Optics
Light Source: 200W CW, 50,000 hours life expectancy
Drive Mode: Constant Current
Color System
Color Mixing: CW
Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Manual
Focus: Electronic
Strobe Rate: 0 to 20 Hz
Dim Modes: 5
Dim Curves: 4
CONSTRUCTION / PHYSICAL
Dimensions: 520x315x320 mm
Weight (single unit):8.4kgs
Exterior Color: Black
Housing Material: streching aluminium

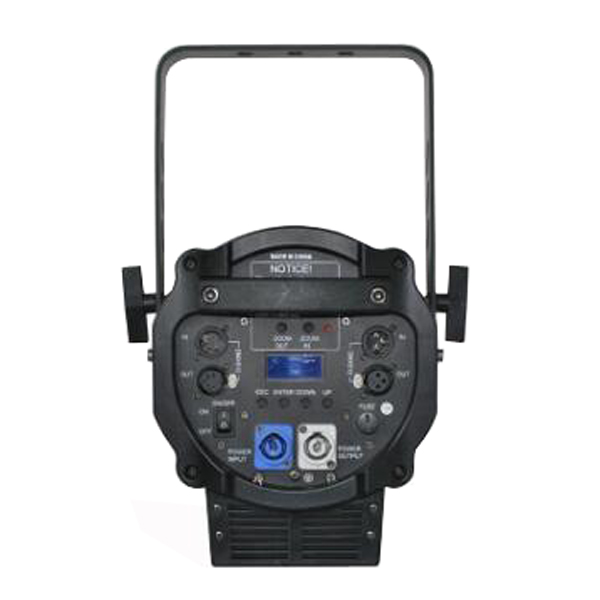

CONNECTIONS
Power In/Out: Powercon
Cable Length (power): 1M
Signal Connection: 3pin & 5pin
CONTROL
Control Protocol: DMX
DMX Channels: 4/5CH
Cooling System
Cooling: forced air convection, with 1 slient fan,fans’ speeds adjustable
Work Enviroment
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): -20° C
Safety Devices
Power failure memory
Protection: Overcurrent, overvoltage and overheating
CERTIFICATIONS / QUALIFICATIONS
CE
IP Rating: IP20 (indoor use)
WHAT’S INCLUDED
LTWZ200-A1(CW)B
Power cable 1 pc
Signal cable 1pc
OPTIONAL ACCESSORIES

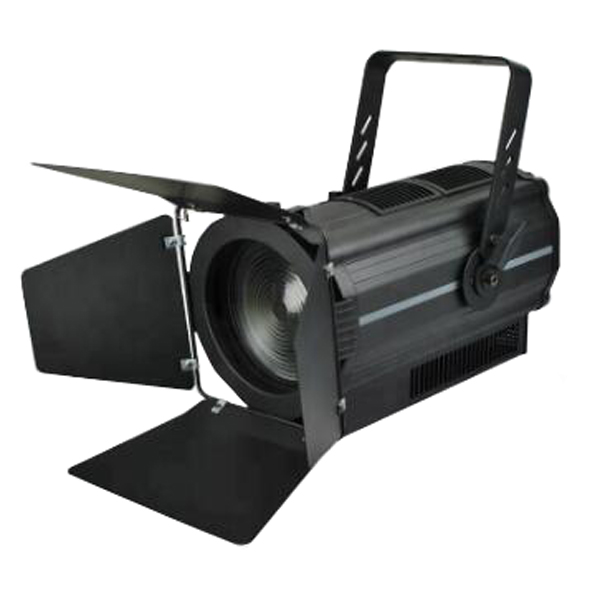

Barndoor
Clamps
Flightcase
