ELECTRICAL
▪ AC power: 100-240 V nominal, 50/60 Hz
▪ Typical total power consumption: 100 W
OPTICS
▪ Light source: 9X10W RGBW 4IN1
▪ Beam Angle：15°/ 25°
▪ Minimum LED lifetime: 50 000 hours (to >70% luminous output)
▪ Rechargement: 4h
DYNAMIC EFFECTS
▪ Color mixing: RGBW 4IN1
▪ Electronic dimming: 0 – 100%
CONTROL AND PROGRAMMING
▪ Control options: DMX512/master-slave/auto/sound active, wireless remote control, mobile APP, support Android, Apple system
▪ DMX channels: 5/9 CH
▪ DMX address setting: OLED display with 4 buttons
▪ Flicker free operation
▪ Mode: auto, fade in and fade out, snapshot, strobe
▪ Protocol: DMX512
CONSTRUCTION
▪ Housing: die-cast aluminium
▪ Color(s): Black
▪ Protection rating: IP65
INSTALLATION
▪ Mounting: Double bracket, surface for truss mount
▪ Orientation: Any
▪ Location: Outdoor use only

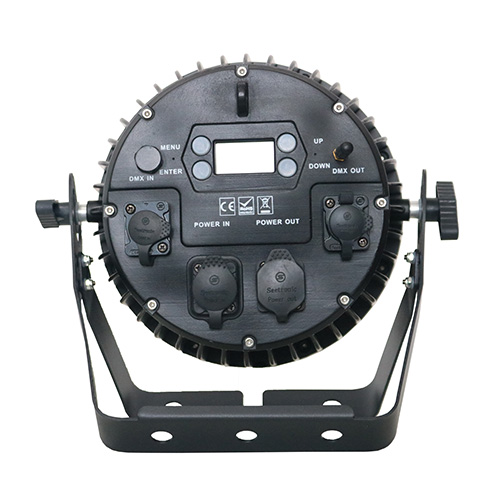

CONNECTIONS
▪ Power In/Out: waterproof, daisy chain
▪ DMX data in/thru: 3-pin XLR (5-pin XLR optional)
THERMAL
▪ natural convection (no fan, no noise)
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C
PHYSICAL
▪ Length: 245 mm
▪ Width: 305 mm
▪ Height: 135 mm
▪ Weight: 5.5 kg
ACCESSORIES
▪ Power In/Out cable attached to fixture: 1.5mm2, rubber, length 0.45mtr
▪ Power in conversion cable not included (optional)
▪ DMX in conversion cable not included (optional)
▪ Power extention cable not included (optional)
▪ DMX extention cable not included (optional)
▪ DMX In/Out cable attached to fixture: length 0.45mtr
▪ Hanging bracket included, 1pc
▪ Safety cable not included (optional)
