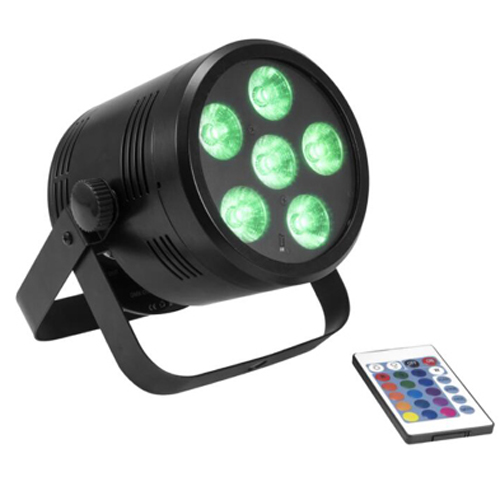

LED Wireless Battery USB Par
reareffect 1effect 2effect 3effect 4effect 5

LWBUP-66A1(6IN1)B

LED Wireless Battery USB Par, 6X6W RGBWA+UV(6IN1), 25°, IP20, Black Shell

ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Power Input Rating: 100-240V, 50-60 Hz
▪ Power consumption: 28W
▪ Battery: 18650, DC14.8V
▪ Battery group capacity(mAh): 4,400mAh
▪ Fixture working time: 4 hours at full power; 8 hours at auto mode; 16 hours at single color
▪ Battery charge time: 4 hrs
▪ Drive current: 350mA

OPTICS
▪ Beam angle: 25°
▪ Light ouput (full right): 417Lux@4mtr
▪ Optic lens: acrylic

COLOR SYSTEM
▪ Color Mixing: RGBWA+UV (6IN1)

EFFECTS
▪ Strobe: 1-20 flashes/sec.
▪ Electronic dimming: 0-100% linear, 16bit smooth dimming
▪ Refresh rate: >4K Hz (Flicker free) , suitable for TV applications and all video recorded events
▪ Dimming curve: 5 types
▪ Built-in strobe macro: Built-in strobe macro and speed adjustable

CONTROL AND PROGRAMMING
▪ Control mode: DMX, Wireless, IR remote, Autorun, Master/Slave, Sound-activate
▪ DMX Channels: 8/13 CH
▪ Setting and addressing: 4-digit LED

CONNECTIONS
▪ Data in/out: XLR 3Pin (XLR 5Pin is optional)

COOLING SYSTEM
▪ Heatsinks in aluminum
▪ Cooling: Natural convection(no fan, no noise)

WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): 5° C

SAFETY DEVICES
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating

CONSTRUCTION
▪ Housing: iron
▪ Color: Black
▪ Housing surface treatment: baking finished
▪ Protection rating: IP20

MECHANICAL SPECIFICATION
▪ Length: 180 mm
▪ Width: 145 mm
▪ Height: 212 mm

WEIGHT
▪ Net Weight: 2.5kg

ACCESSORIES
▪ Power input cable 0.75mm2, PVC sheath, length 1.2mtr
▪ DMX cable included, length 1.0mtr
▪ Safety cable not included (optional)
▪ Infrared remoter included
▪ Wireless DMX antenna not included

APPROVALS
▪ CE
