ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Beam angle：60°
▪ Power consumption: 270W

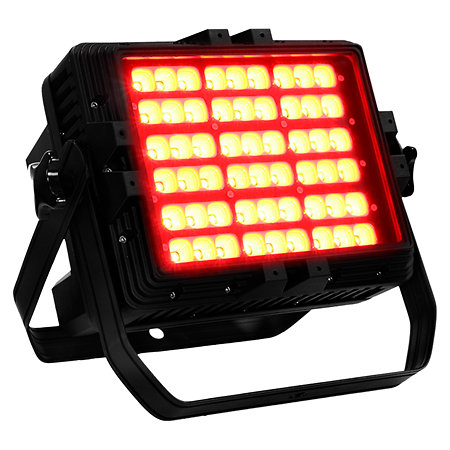

OPTICS
▪ Light Source: 54x3W RGB 3IN1
▪ Drive Mode: Constant Current
▪ Drive Current: 300mA
COLOR SYSTEM
▪ Color Mixing: RGB (3IN1)
▪ Uniform and delicate RGB mixing color system
▪ Static color set up
EFFECTS
▪ Strobe: 0-20Hz
▪ Dimmer: From 0-100 linear dimming
▪ Flashing rate: 1-20Hz
▪ Auto effect: 5 kinds auto effects Optical System
▪ Dim Modes: Dimmer 0 means fast linear dimming. Dimmer 1-8 stands for soft non-linear dimming
CONSTRUCTION / PHYSICAL
▪ Dimensions: 36X22.1X26.6 CM
▪ Weight (single unit):8.8 kg
▪ Exterior Color: Black
▪ Housing Material: Aluminum die-cast

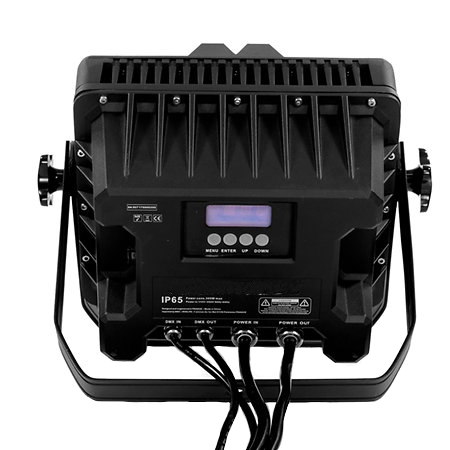

CONNECTIONS
▪ Power In/Out: IP65 Powercable
▪ Cable Length (power): 1M
▪ Signal Connection: IP65 Signalcable
CONTROL
▪ Control Mode: DMX-512, auto-program mode, master-slave mode, static mode and LED display
▪ Control Modes: 5 kinds control channels modes. STAG mode, ARC3, AR3.d, AR3.S, 3CH modes can be chosen (9CHS/4CHS/5CHS/6CHS/3CHS)
▪ Display: LED
COOLING SYSTEM
▪ Cooling: No Fan, No Noise, case heat sink
WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): 5° C
SAFETY DEVICES
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating
QUALIFICATIONS
▪ IP Rating: IP65 (outdoor use)
WHAT’S INCLUDED
▪ Power cable 1 pc
▪ Signal cable 1pc
OPTIONAL ACCESSORIES
▪ Clamps
▪ Flightcase
