Light Source:
150W Yodn 3R
4000 Hour average lamp life

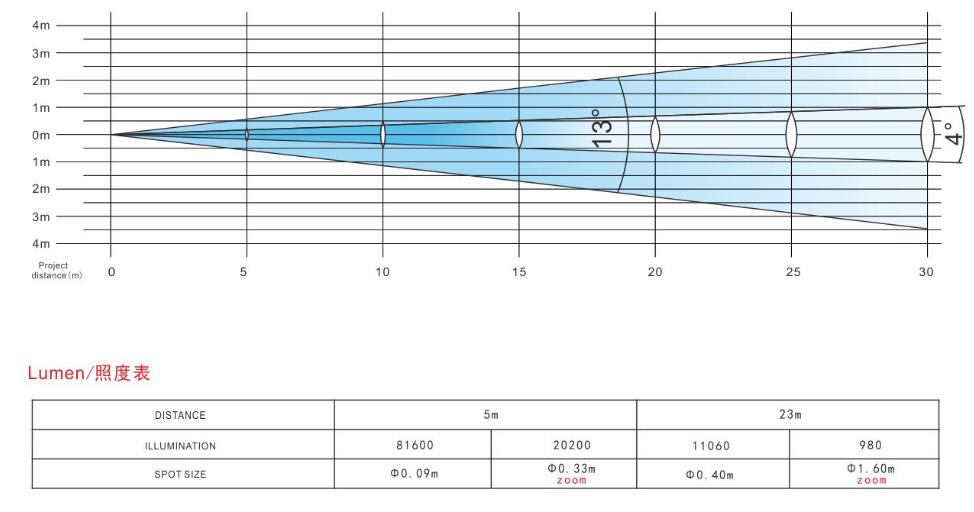

Beam Angle:
prism rotating Zoom: parallel beam angel 2.5°-15° change
Optics
Lens : high precision optical lens
Zoom: parallel beam angel 2.5°-15° change

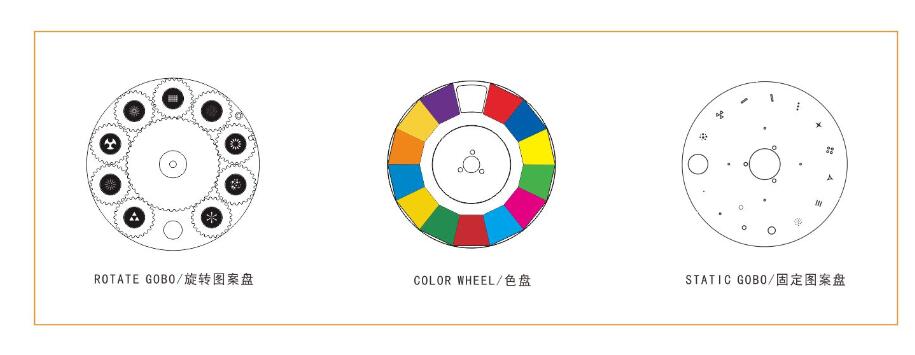

Colors
Color wheel: 13 dichroic filters + white
Gobos
Fixed gobo : 14 gobo + white
Rotation gobo: 9 gobo+ white, changeable
Prism
8 facet prism+ 6 l inear prism , Frost function
Control
Control mode : Standard DMX512, Automatic and Master/ slave mode
Channel : 16 CHs / 24 CHs
Controller can open the lamp and reset, including delaying function
Effects
Wash effect : adjustable Wash effects angle
Focus: linear adjustment
Dimmer : 0-100% linear adjustment
Strobe : Double lens strobe (0.5-9 times/ second)
8 / 16 Bit resolution adjustable movement
Movement
Pan/Tilt : X axis 540° Y axis 270°automatically accurate positioning
Fixation option: Pan/Tilt-lock mechanism
Connectors
5pin DMX Art-net or 3pin DMX Art-net
powerCon In
Power
100 – 240 VAC, 50/60 Hz
Power Consumption
230 W max.
Approvals and Ratings
CE pending
IP20 rated
Working Position
Any

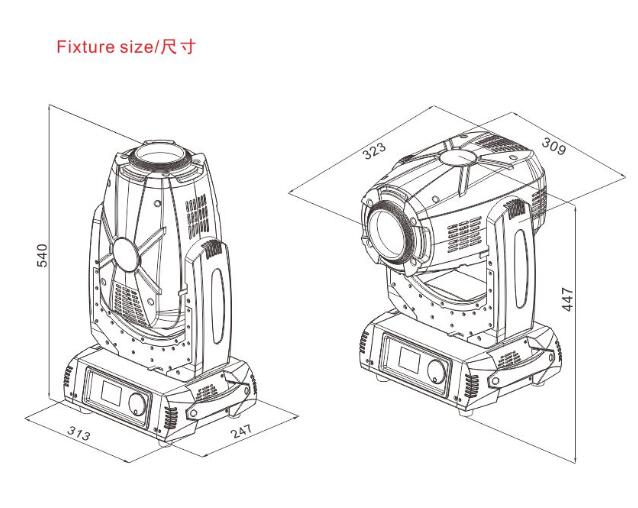

Dimensions
382x365x557 mm
Weight
N.W: 12.5kgs
G.W: 16.0kgs
